Ever wondered about the magic behind your trailer’s strength? Join me on a journey into the world of ‘Bolt Pattern & Trailer Towing Capacity.’ Let’s unravel the mystery behind those bolts and discover the key to confident towing on the open road!
                             11

1. What is a bolt pattern?

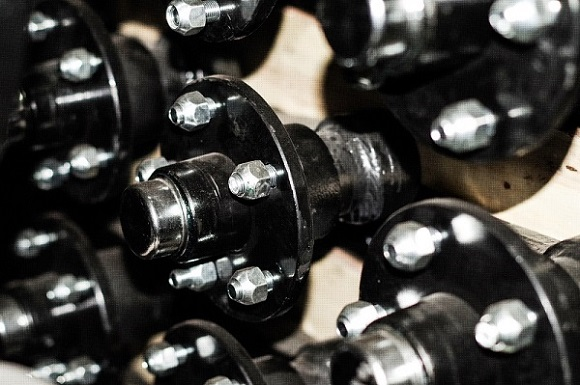

A bolt pattern is the unique arrangement of bolts and lug nuts on a vehicle’s wheel, akin to a fingerprint for your wheels. It specifies the number of bolts, the diameter of the circle they form, and their spacing. This pattern is crucial for ensuring the proper attachment of wheels.
When towing, matching the bolt pattern of your vehicle with that of the trailer is vital for safe and secure towing. Incorrect bolt patterns can lead to uneven weight distribution, risking wheel damage or detachment on the road. In essence, the bolt pattern acts as a unique fingerprint for your wheels, ensuring they fit and function correctly.

2. How to find your wheel bolt pattern with our wheel bolt pattern guide?

Are you unsure about your vehicle’s wheel bolt pattern? Fear not! Our simple guide will walk you through the process of discovering this vital piece of information.

Step 1: Count

Common Bolt Patterns:

For most vehicles, the bolt count is either 4, 5, 6, or 8. Common 4-bolt patterns are often found on compact cars, while 5-bolt patterns are typical for mid-sized vehicles and sedans. Larger vehicles, like trucks and SUVs, may have 6 or 8 bolts.

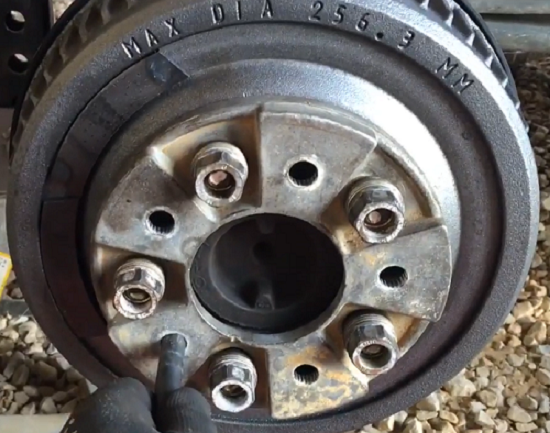

Dual Drill Bolt Patterns:

In some cases, wheels may have dual drill bolt patterns. This means that they accommodate two different bolt patterns, providing greater flexibility. If your wheel has an unusual bolt count, it might be a dual drill pattern.

Step 2: Measure

Calculation PCD (Pitch Circle Diameter):

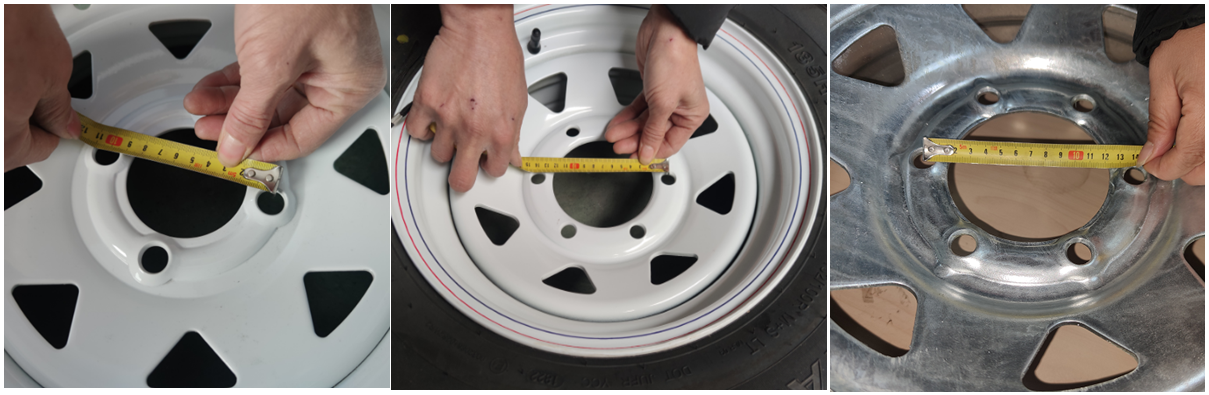

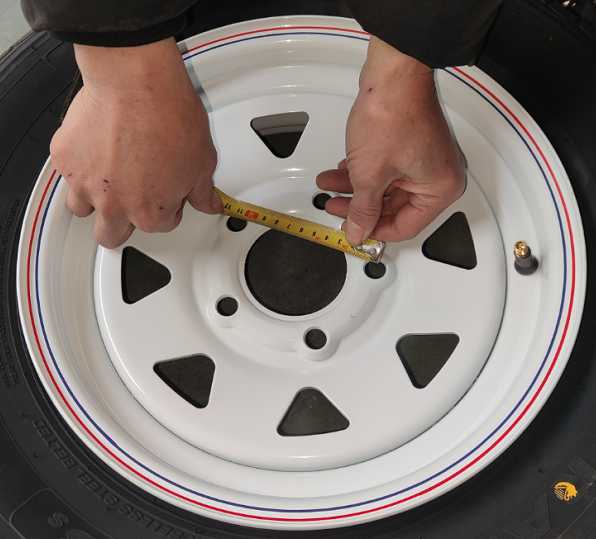

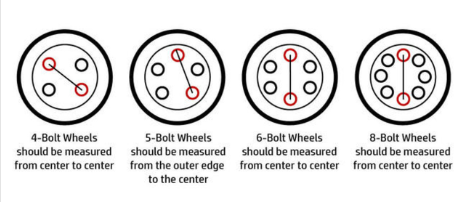

PCD is the diameter of an imaginary circle formed by the centers of the bolt holes. To measure PCD, follow these steps:
  1. Select any bolt hole as a starting point.
  2. Measure from the center of this hole to the center of the hole directly across from it.
  3. For wheels with an even number of holes (4, 6, or 8), measure to the center of any hole adjacent to an imaginary line passing through the center of the wheel.

                                 Bolt Patterns for Wheels with Even Bolt Holes (4, 6, or 8 Holes):

For even bolt patterns, such as 4, 6, or 8 holes, the measurement you obtain is the Pitch Circle Diameter (PCD). Use this PCD measurement to determine your bolt pattern.

                                               Bolt Patterns for Wheels with Odd Bolt Holes (5 Holes):



For wheels with 5 bolt holes, measure from the center of one hole to the imaginary line passing through the center of the wheel.

                                                  Trailer bolt pattern measurement guide



Step 3：Bolt Pattern Conversions chart

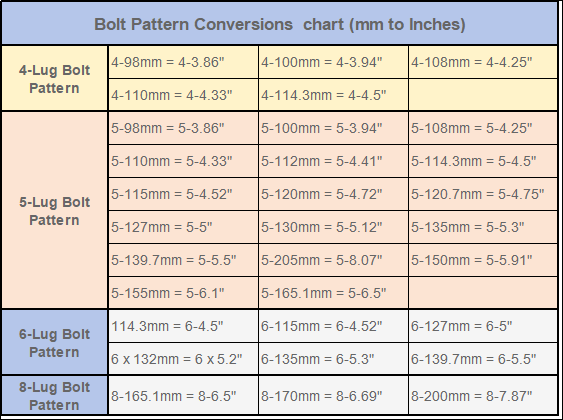

With the number of bolts and the PCD, it is time to determine the bolt type. Please refer to our Bolt Type Conversion Chart to convert your measurements into clear bolt type designations.


Step 4: Contact TOW-MAX for Assistance

If you find the process challenging or if you’re dealing with an uncommon bolt pattern, don’t hesitate to reach out to our team for assistance. Our experts are here to help you decode the specifics of your wheel bolt pattern, ensuring accuracy and confidence in your selection.

3. What Is Towing Capacity?

Understanding Towing Capacity

Towing capacity is a crucial specification for any vehicle, defining the maximum weight it can safely tow. Whether you’re hauling trailers, boats, or other heavy loads, knowing your vehicle’s towing capacity is essential for safety and optimal performance.

Terms Related to Towing Capacity

  1. GVWR: This is the maximum weight a fully loaded vehicle is rated to safely carry, including passengers and cargo. It serves as the baseline for determining towing capacity.
  2. GCWR: GCWR is the total weight a vehicle and its attached trailer can safely handle. It includes the vehicle’s weight, the trailer’s weight, and the weight of passengers and cargo.
  3. Curb Weight: This is the weight of the vehicle without any passengers or cargo but includes a full tank of fuel and other fluids. Subtracting the curb weight from the GVWR provides the payload capacity, which contributes to towing capacity.
  4. Payload: Payload is the total weight that your vehicle can carry, including passengers, cargo, and any accessories. It contributes to the overall towing capacity.
  5. Max Towing Capacity：Refers to the maximum weight a vehicle can safely tow. It’s a crucial specification for choosing the right trailer or load. Exceeding this limit can compromise safety and performance, so it’s essential to adhere to the manufacturer’s guidelines.

4. How to Calculate Towing Capacity？

Step 1：Identify your vehicle’s GVWR.
Step 2：Subtract the curb weight from the GVWR to determine payload capacity.
Step 3：Consider other factors, such as engine power and transmission capabilities.
Step 4：Refer to the manufacturer’s specifications for the greatest towing capacity.

5. How Bolt Pattern Determines Your Trailer’s Towing Capacity?

Ever wondered how important the bolt pattern on a trailer wheel is? The way the bolts and lug nuts are arranged is like a code that reveals how much weight the trailer can hold while towing.
The Bolt Pattern Gives an Idea of the Maximum Towing Capacity of the Trailer:
Picture the bolts on your trailer wheel as the unsung heroes holding everything together. The pattern they make gives a hint about how strong the trailer is. The more bolts, the better it can handle heavier stuff. It’s like having more hands to share the load.
The General Rule of Thumb for Bolt Pattern & Towing Capacity:
While it’s not a strict science, there is a general rule of thumb linking bolt pattern to towing capacity. Here’s a simple trick – more bolts usually mean more towing power.
  • 4 Bolt = 2K
  • 5 Bolt = 2K or 3.5K
  • 6 Bolt = 2.5K or 5.2K
  • 8 Bolt = 6K, 7K, 8K



If a trailer has lots of bolts, especially in an 8-bolt pattern, it’s likely built to handle significant loads. However, note that bolt pattern is just one of several factors influencing towing capacity.

Conclusion: Cracking the Code to Towing Confidence

In the world of towing, understanding your trailer’s bolt pattern is like having the key to a secret language. Let’s wrap up what we’ve learned:
More Lugs (Studs) = More Load Capacity: Think of the lugs on your trailer as the unsung heroes, each playing a role in how much weight your trailer can handle. The more lugs, the stronger the foundation. So, if you spot a trailer with more bolts, it’s a sign it’s ready for some heavy lifting.
TOW-MAX is not just a global automotive parts manufacturer; we are your partner in excellence. If bolt type codes are tricky or you’re in need of a reliable trailer parts supplier, contact us. We’re here to help!
