Europe Jockey Wheels

Ideal for small commercial trailers and larger caravans in European market

Home > Europe Jockey Wheels

Features

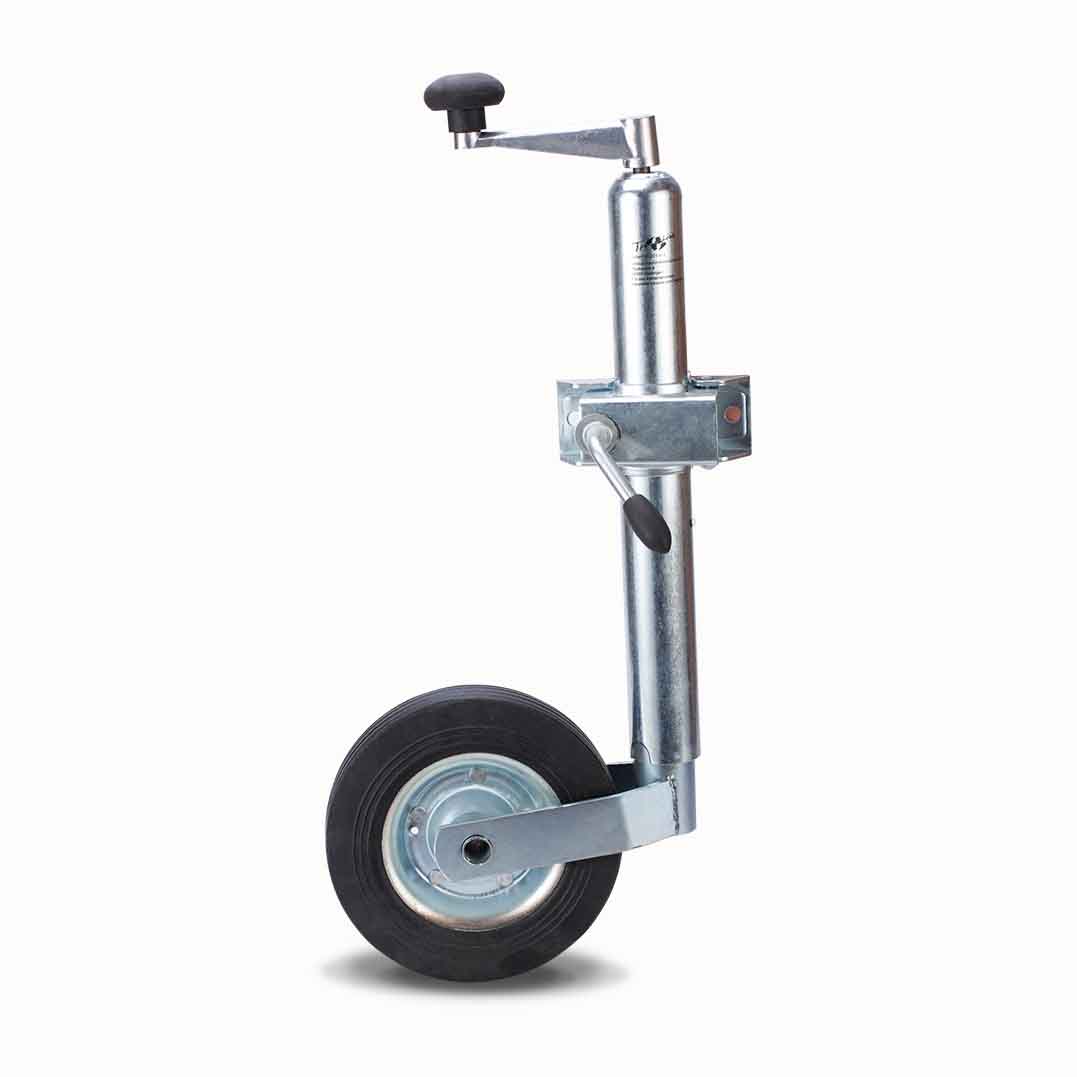

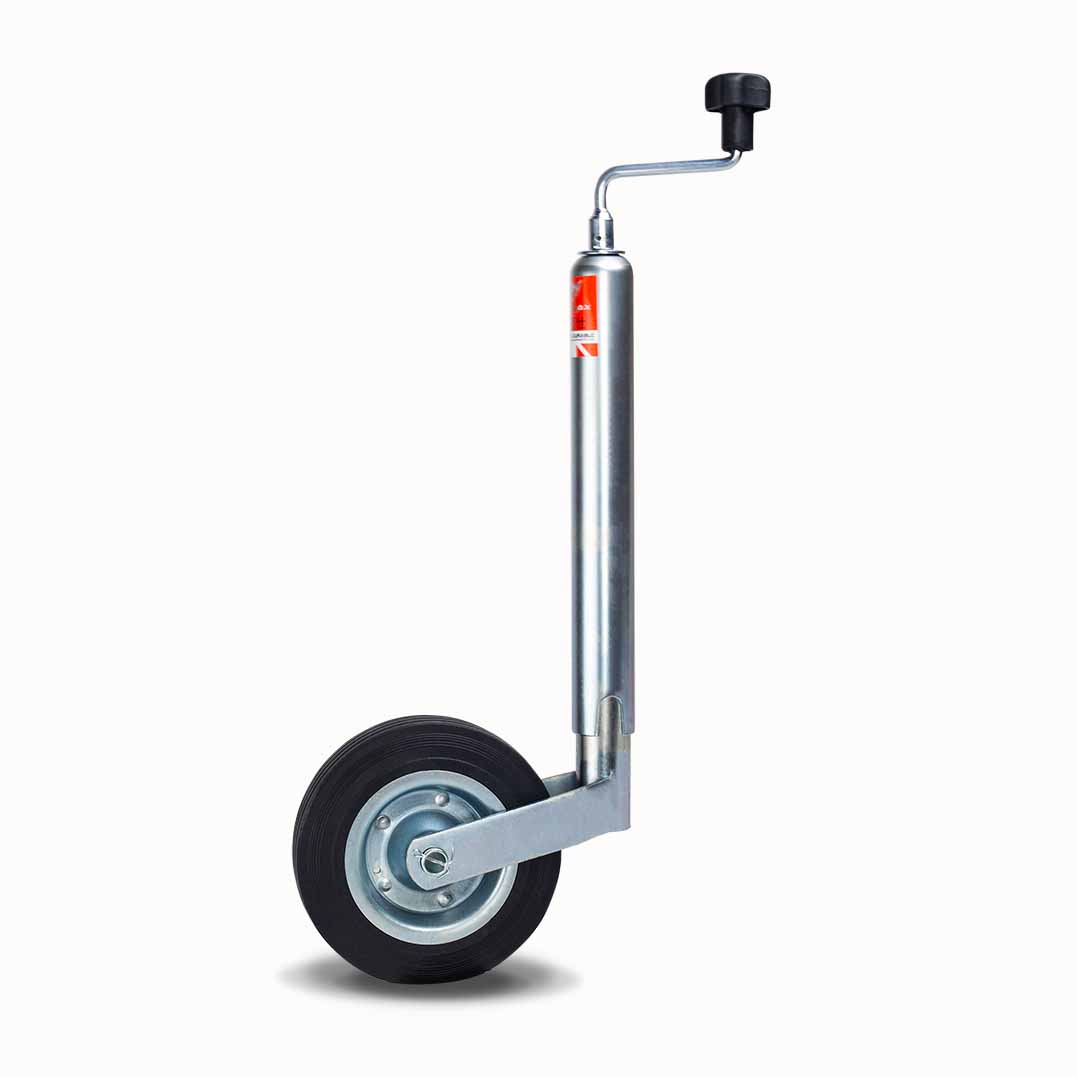

  • Topwind jockey wheels come with a comfortable and strong handle
  • 48mm & 60mm tube diameters to suit towing couplings or independant brackets

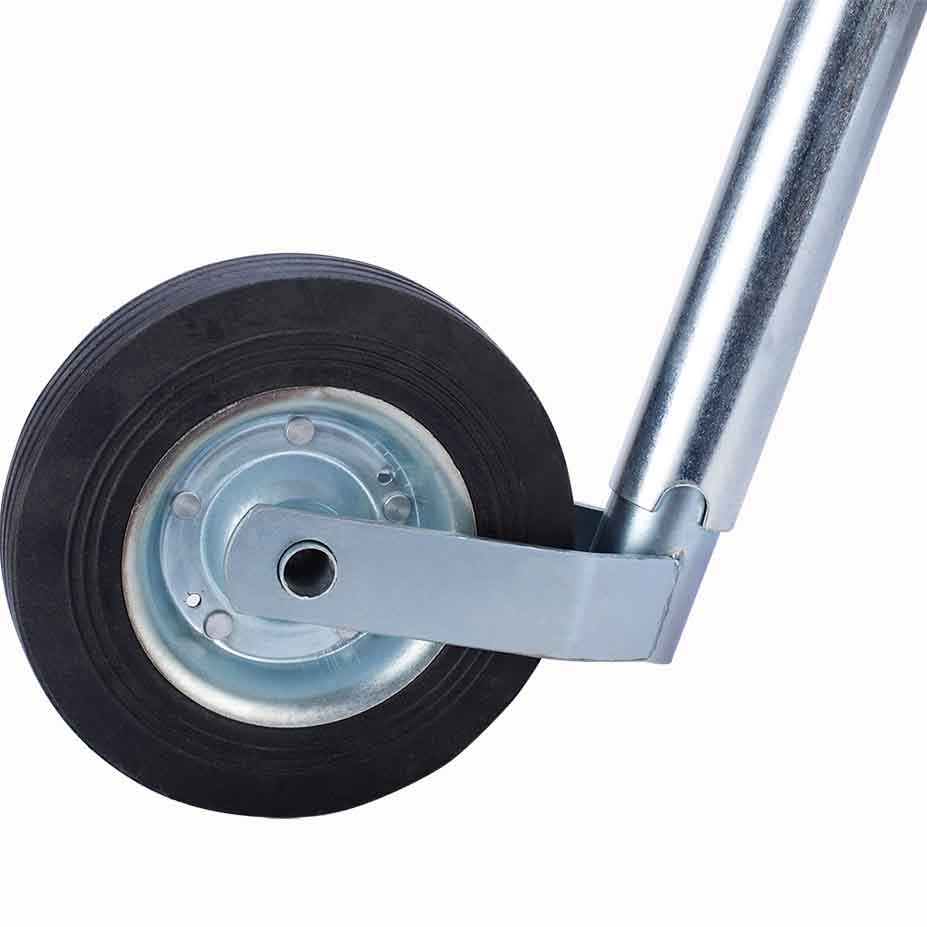

  • Offered dia.200mm and 220mm rubber wheels with metal rim, and also dia.260mm pneumatic wheels offering smooth and comfortable moving with your trailer
  • 100 kg to 250 kg series for option
  • For light and medium duty trailers
Get A Quote

TOW-MAX light and medium duty jockey wheels are ideal for small commercial trailers and larger caravans, especially in European market.
The many different types of jockey wheels in the range are robust, easy to operate and have many unique features.
Whatever the type of trailer,TOW-MAX jockey wheel has a solution that has been designed to move and hitch your valuable payload with ease.

Specifications

Product Code Support Capacity Outer tube Dia. Travel handle Type Wheel Rim Type Rubber Wheel Size Finish Unit Wt. (kgs) Qty/Pallet
JW2048LSZ 150 kgs φ48mm 240mm Low Steel Rim 200 x 50mm clear zinc plated
JW2048LPZ 150 kgs φ48mm 240mm Low Plastic Rim 200 x 50mm clear zinc plated
JW2248HSZ 150 kgs φ48mm 240mm High Steel Rim 220 x 65mm clear zinc plated
JW2048HSZ 150 kgs φ48mm 240mm High Steel Rim 200 x 50mm clear zinc plated
JW2260LSZ 150 kgs φ60mm 240mm Low Steel Rim 220 x 65mm clear zinc plated
JW2648LPZ 150 kgs φ48mm 240mm Low Pneumatic 260 x 85mm clear zinc plated

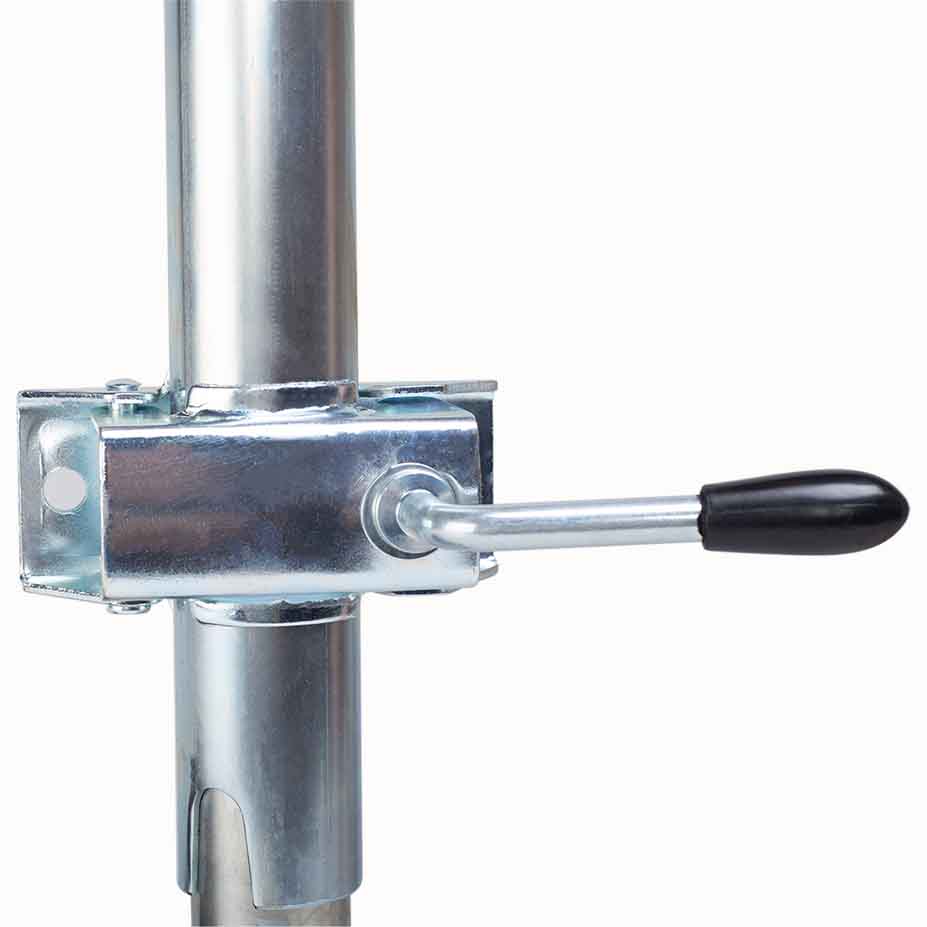

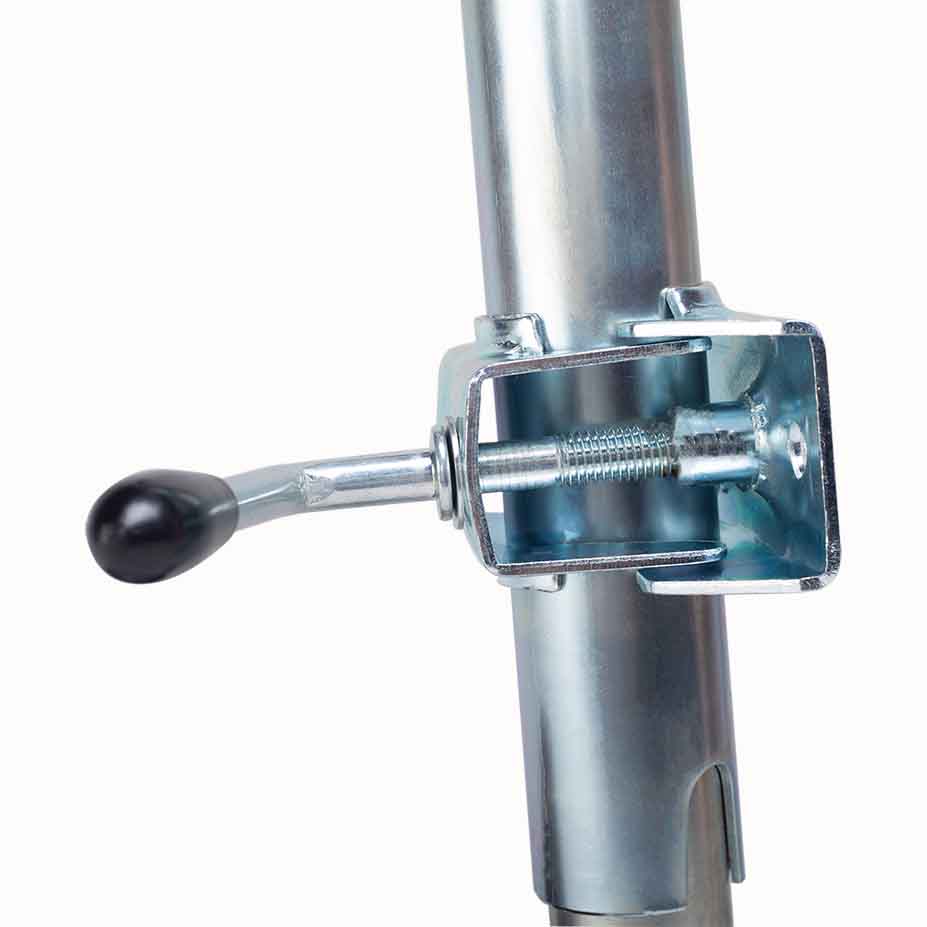

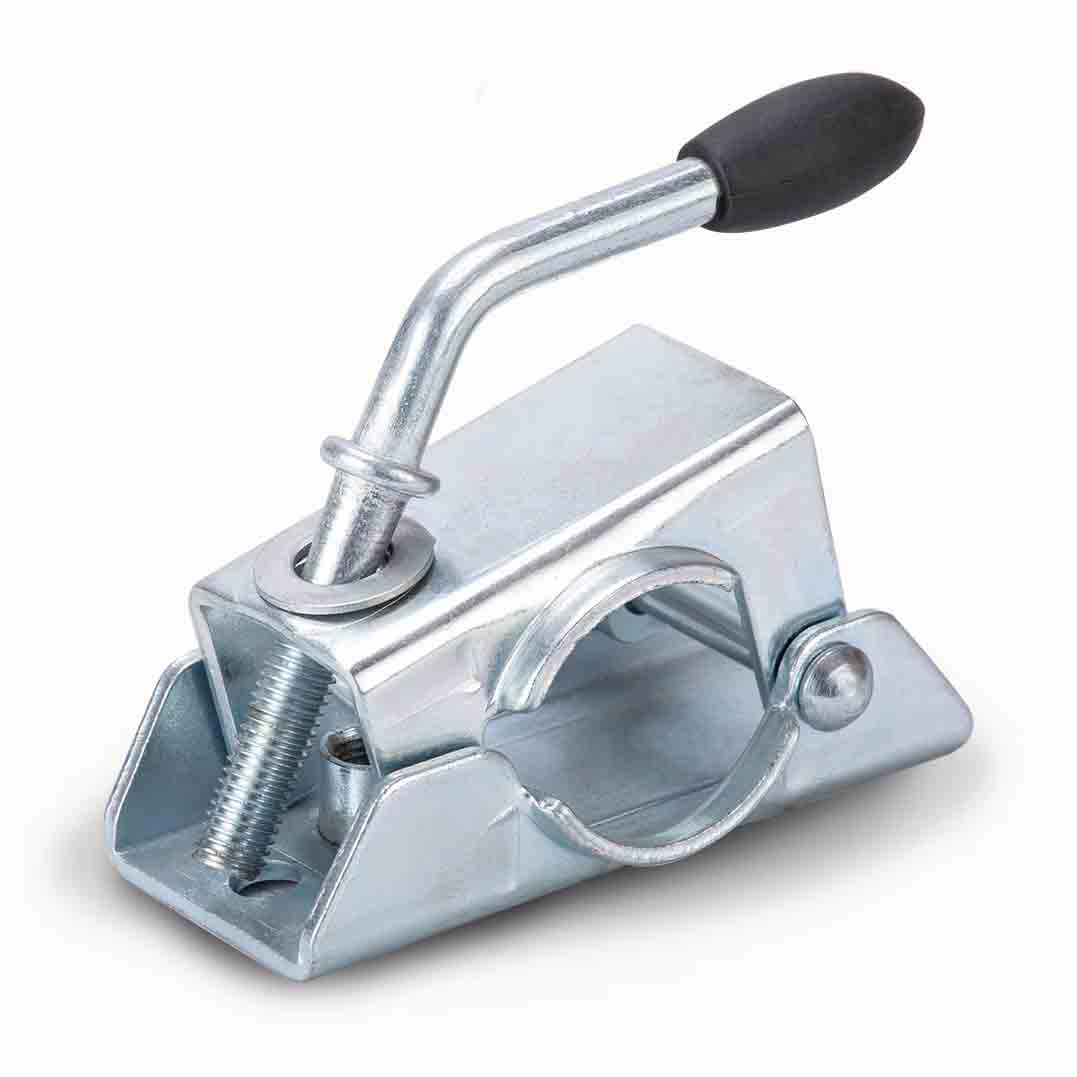

C48 48mm standard duty split clamp Bolt holes centre 105mm clear zinc plated
C60 60 mm Heavy Duty Jockey Wheel clamp Bolt holes centre 105mm clear zinc plated
RW205M Replacement rubber wheel with metal center rim 200 x 50mm
RW205P Replacement rubber wheel with plastic center rim 200 x 50mm
RW225M Replacement rubber wheel with metal center rim 220 x 65mm
PW265M Replacement pnuematic wheel with metal center rim 260 x 85mm
