• All-steel construction for superior strength and durability.
• Pre-pressed races and studs.
• Includes bearings, grease seal, grease cap and lug nuts.
• It provides 100% of hub cavity pre-greased with sticky grease.
• Easy to maintain.
• Optional for black painted, galvanized or raw finish.

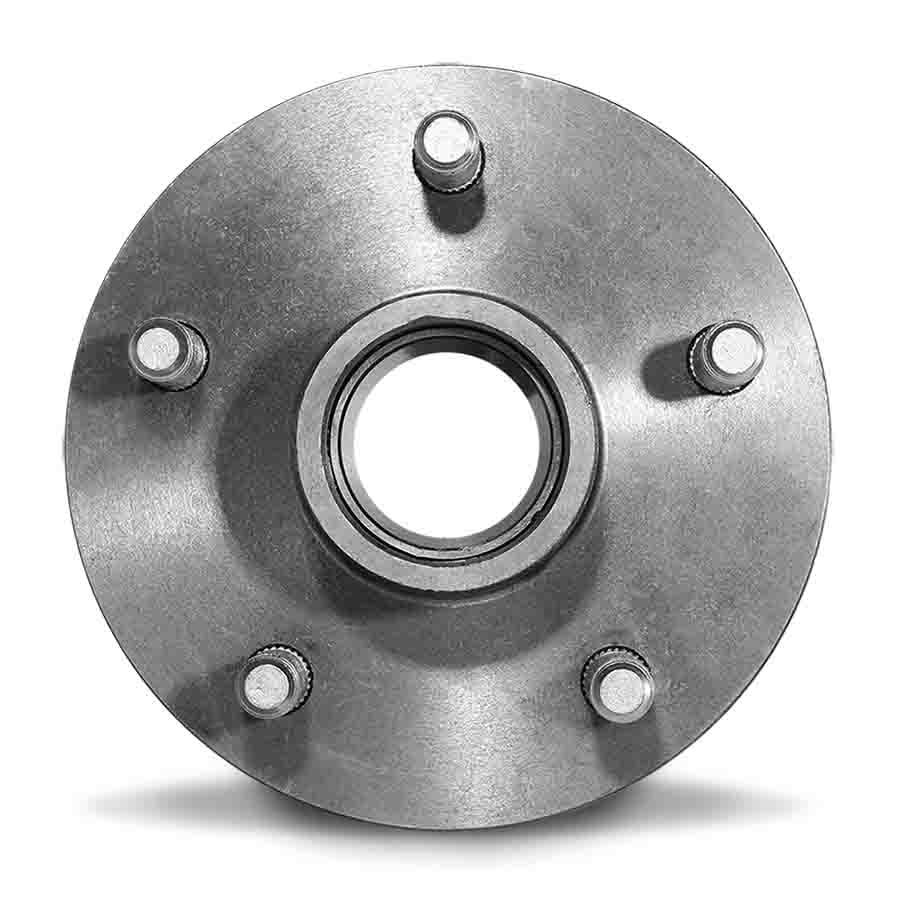

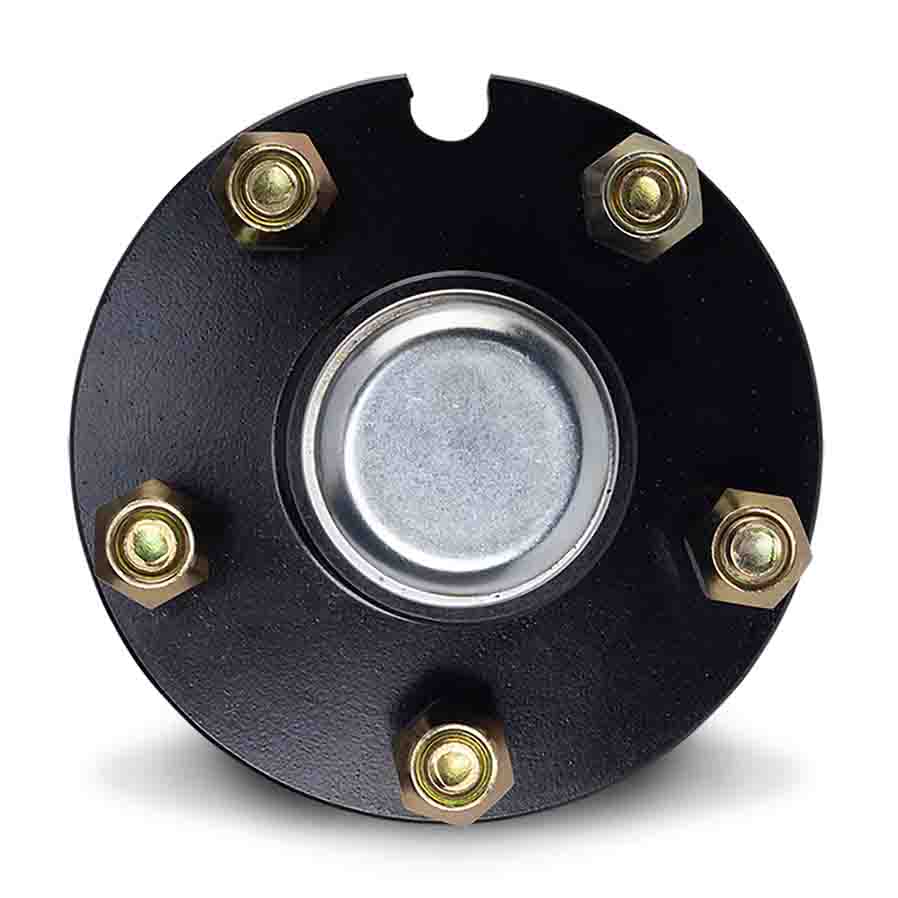

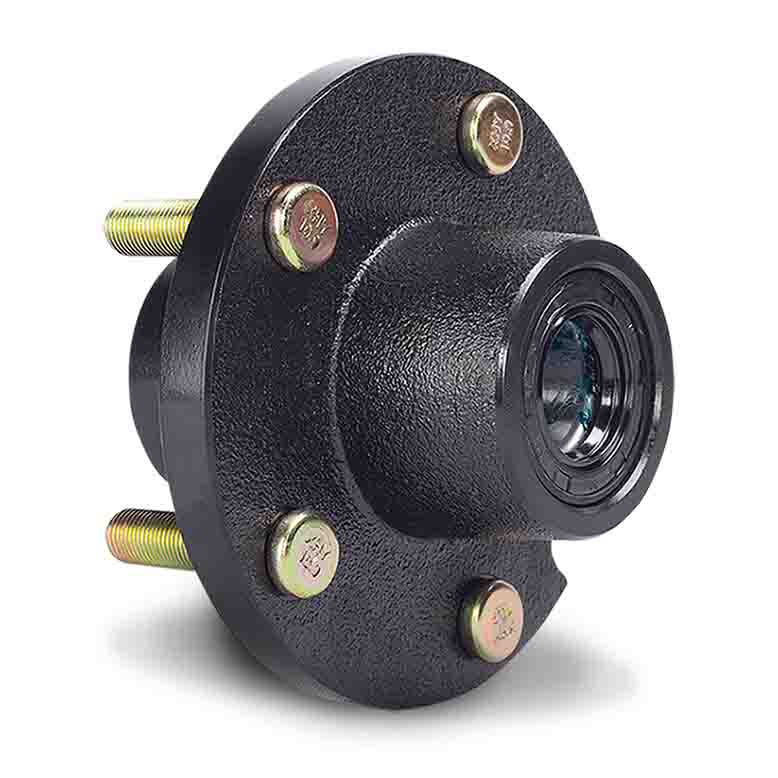

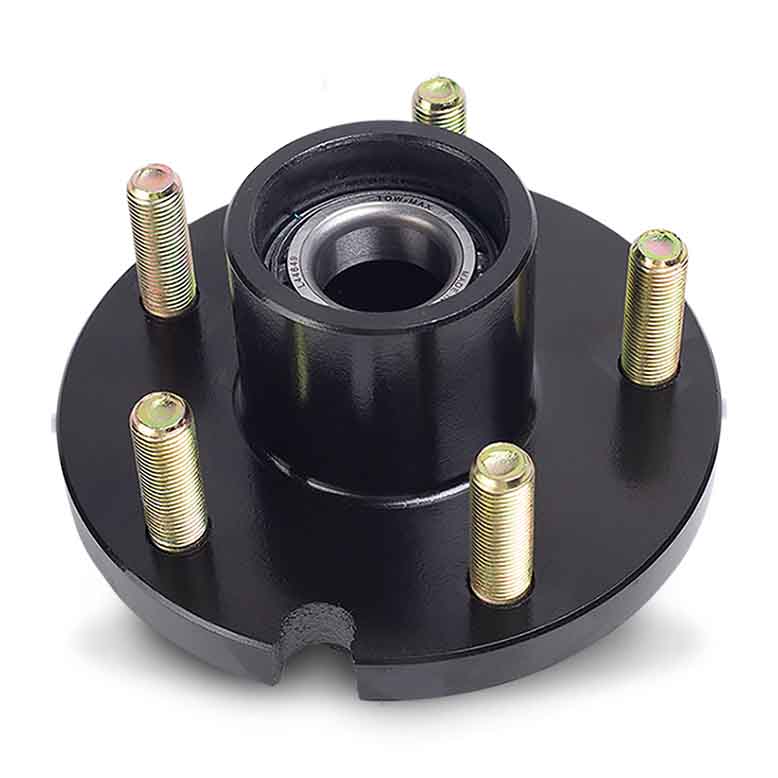

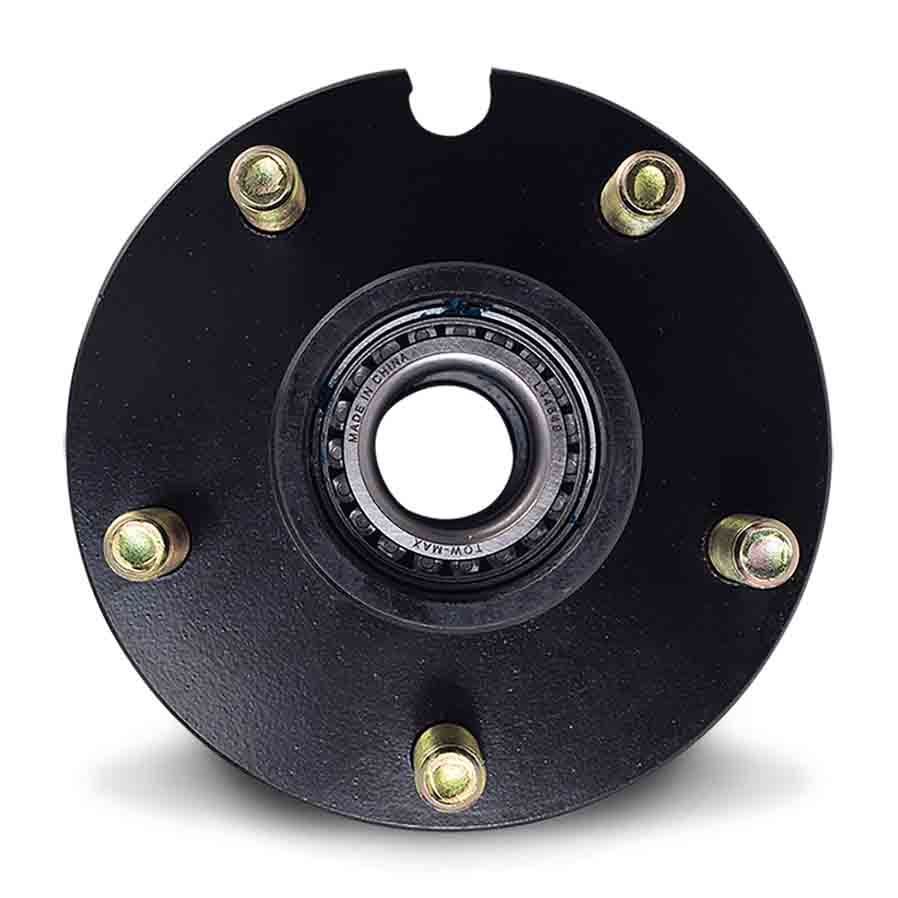

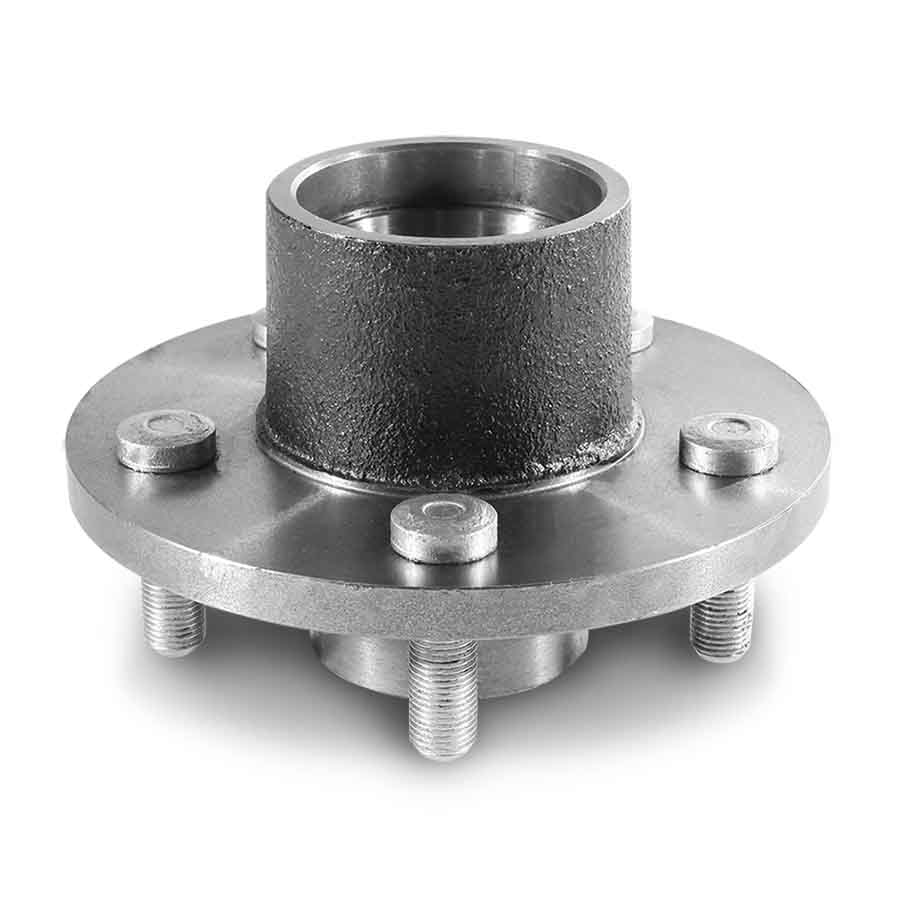

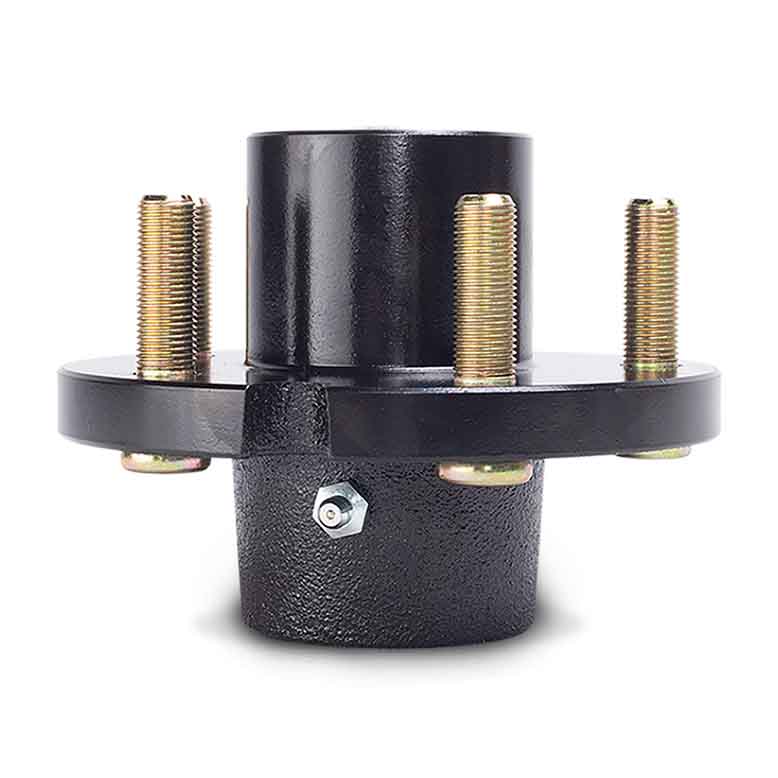

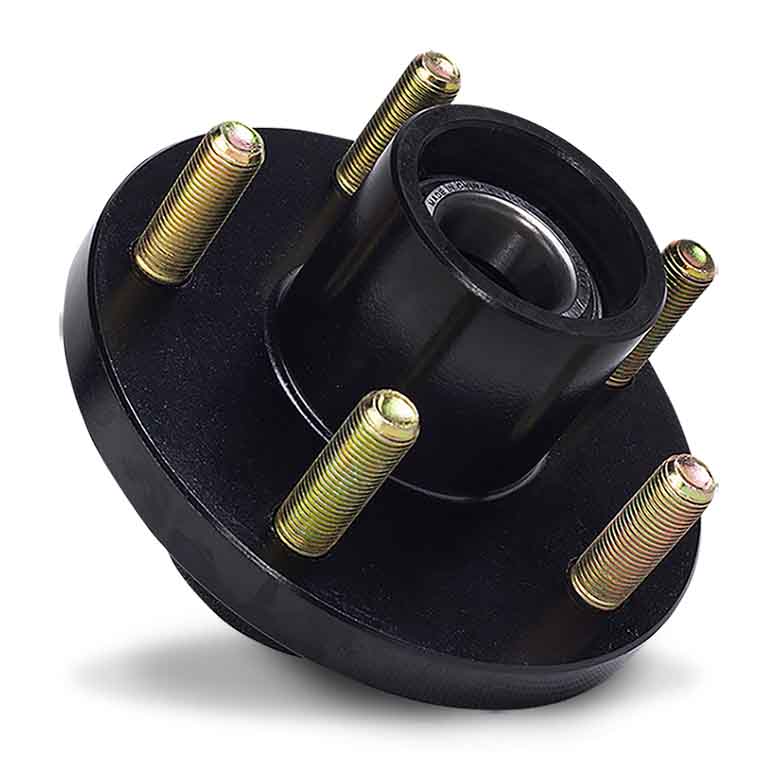

TOW-MAX Idler trailer hubs kits include: hub, bearings, seal, dust cap, cotter pin, lug nuts or lug bolts. Made of cast iron and e-coated for corrosion resistance, with superior strength and durability.
TOW-MAX Idler hubs are used on tardy trailers, boat trailers, horse float lazy axles common trailers and other types wherever braked hubs are not required. We have provided a guide on how to find your stud pattern to help you find your correct trailer hub for your axle set up.
| Part Number | Hub Flange Dia. | No. of Studs | P.C.D | Inner Bearing | Outer Bearing | Capacity per each | Grease Seal ID | Finish | Spindle type |
| H1462041B | φ144mm | 1/2″x 4 | 4″ | L44643 | L44643 | 1000 lbs | 1.24″ | E-COAT | BT8 |
| H1462042B | φ144mm | 1/2″x 4 | 100MM | L44643 | L44643 | 1000 lbs | 1.24″ | E-COAT | BT8 |
| H1462051B | φ144mm | 1/2″x 5 | 4-1/2″ | L44643 | L44643 | 1000 lbs | 1.24″ | E-COAT | BT8 |
| H1462751B | φ144mm | 1/2″x 5 | 4-1/2″ | L44649 | L44649 | 1350 lbs | 1.5″ | E-COAT | BT16 |
| HB1603551C | φ157mm | 1/2″x 5 | 4-1/2″ | L68149 | L44649 | 1750 lbs | 42mm | E-COAT | #84 |
| HB1603551B | φ157mm | 1/2″x 5 | 4-1/2″ | L68149 | L44649 | 1750 lbs | 1.73″ | E-COAT | #84 |
| HA1603551B | φ162mm | 1/2″x 5 | 4-1/2″ | L68149 | L44649 | 1750 lbs | 1.73″ | E-COAT | #84 |
| HC1603552B | φ168mm | 1/2″x 5 | 5″ | L68149 | L44649 | 1750 lbs | 1.73″ | E-COAT | #84 |
| H1806061C | φ180mm | 1/2″x 6 | 5-1/2″ | 25580 | 15123 | 3000 lbs | 55mm | E-COAT | #42 |
| H1806061B | φ180mm | 1/2″x 6 | 5-1/2″ | 25580 | 15123 | 3000 lbs | 2.24″ | E-COAT | #42 |
| H2107081B | φ208mm | 1/2″x 8 | 6-1/2″ | 25580 | 14125A | 3500 lbs | 2.24″ | E-COAT | #42 |
| H152FLM | φ152mm | 1/2″x 5 | 114.3 | LM67048 | LM11949 | 1100 lbs | LM | E-COAT | Aus |
| H152FSL | φ152mm | 1/2″x 5 | 114.3 | L68149 | LM12749 | 1750 lbs | SL | E-COAT | Aus |
| H152HTLM | φ152mm | 7/16″x 5 | 108MM | LM67048 | LM11949 | 1100 lbs | LM | E-COAT | Aus |
| H152HTSL | φ152mm | 7/16″x 5 | 108MM | L68149 | LM12749 | 1750 lbs | SL | E-COAT | Aus |
| H152HQLM | φ152mm | 7/16″x 5 | 120MM | LM67048 | LM11949 | 1100 lbs | LM | E-COAT | Aus |
| H152HQSL | φ152mm | 7/16″x 5 | 120MM | L68149 | LM12749 | 1750 lbs | SL | E-COAT | Aus |
| H190LCLM | φ190mm | 1/2″x 6 | 139.7 | LM67048 | LM11949 | 1100 lbs | LM | E-COAT | Aus |
| H190LCSL | φ190mm | 1/2″x 6 | 139.7 | L68149 | LM12749 | 1750 lbs | SL | E-COAT | Aus |
