A-Frame Jack

Features

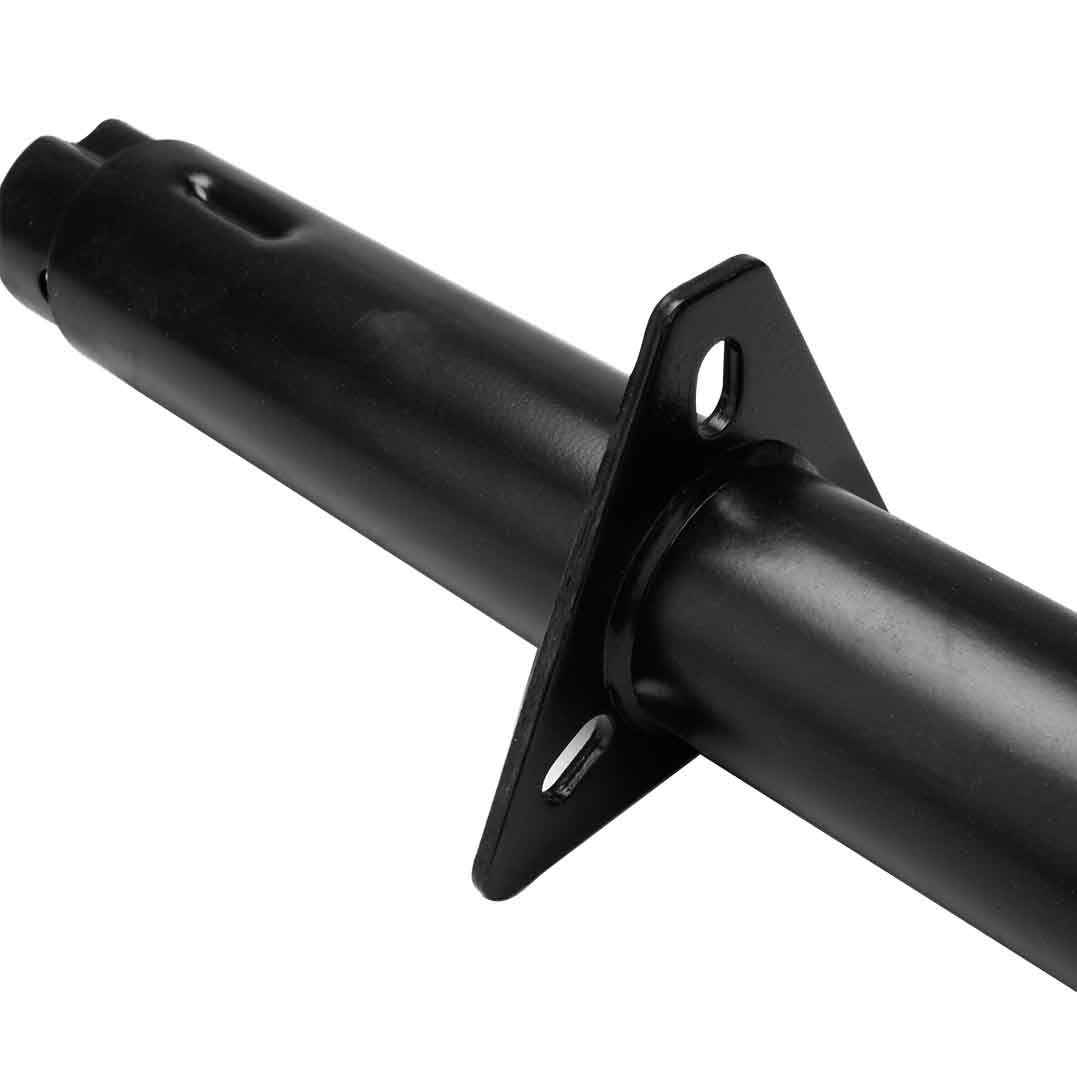

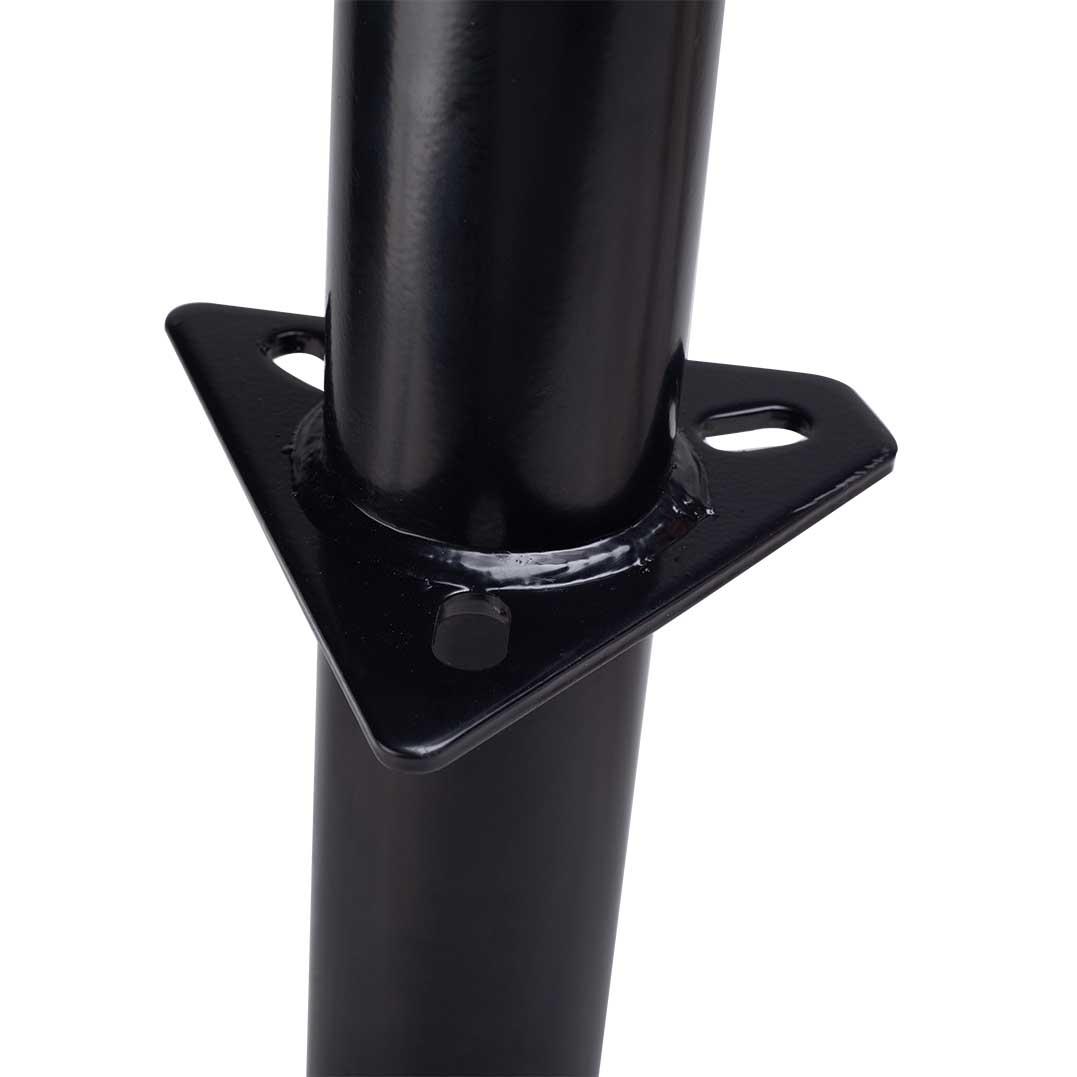

• Weld-on or Bolt-on mounting for option

• Black powder coat finish or durable clear zinc plated finish resists corrosion

• For using with foot plate or caster

• Internal gearbox provides an attractive look

• Typical gear ratios designed to reduce the numbers of turns

• Reasonable handle design can take less time and muscle to crank

Get A Quote

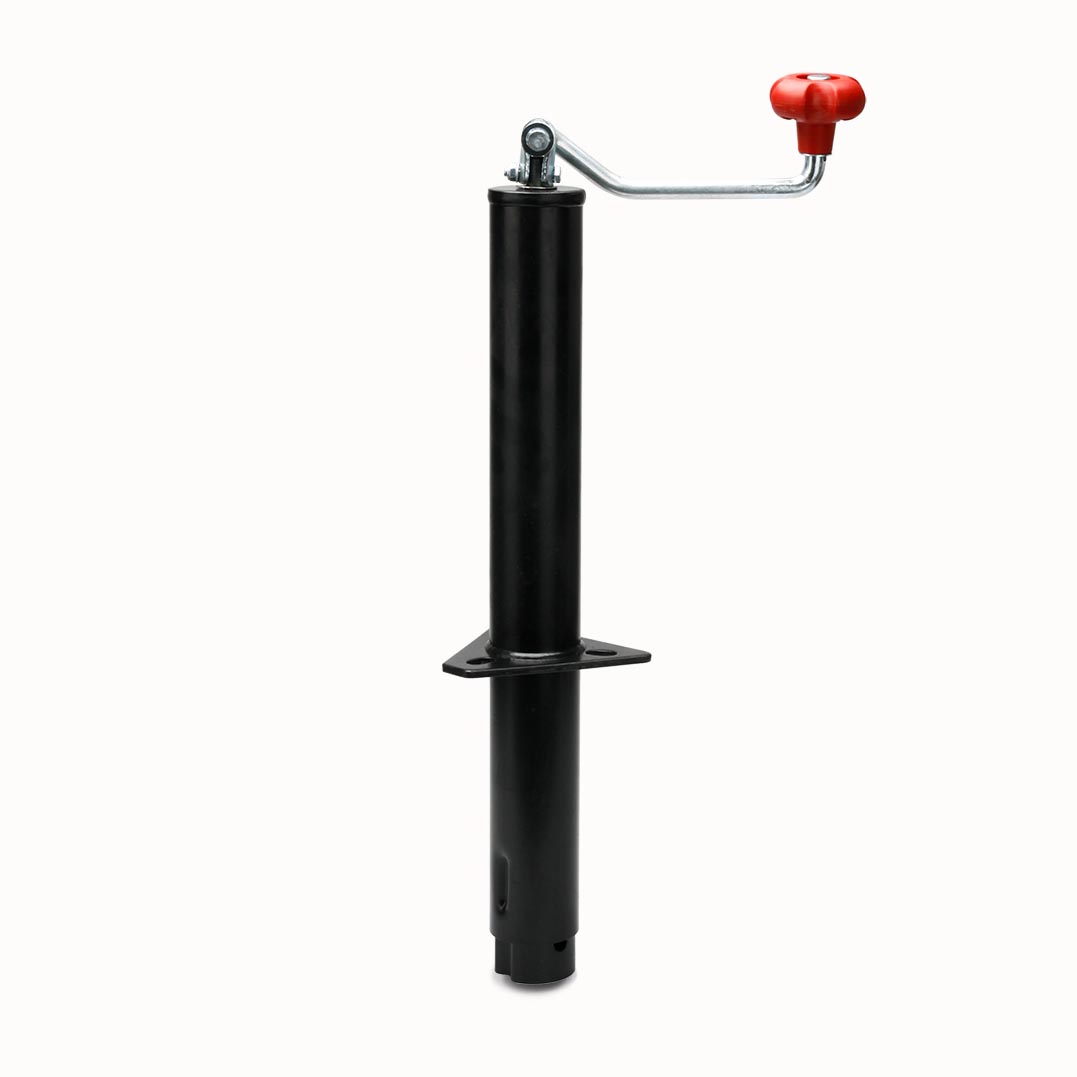

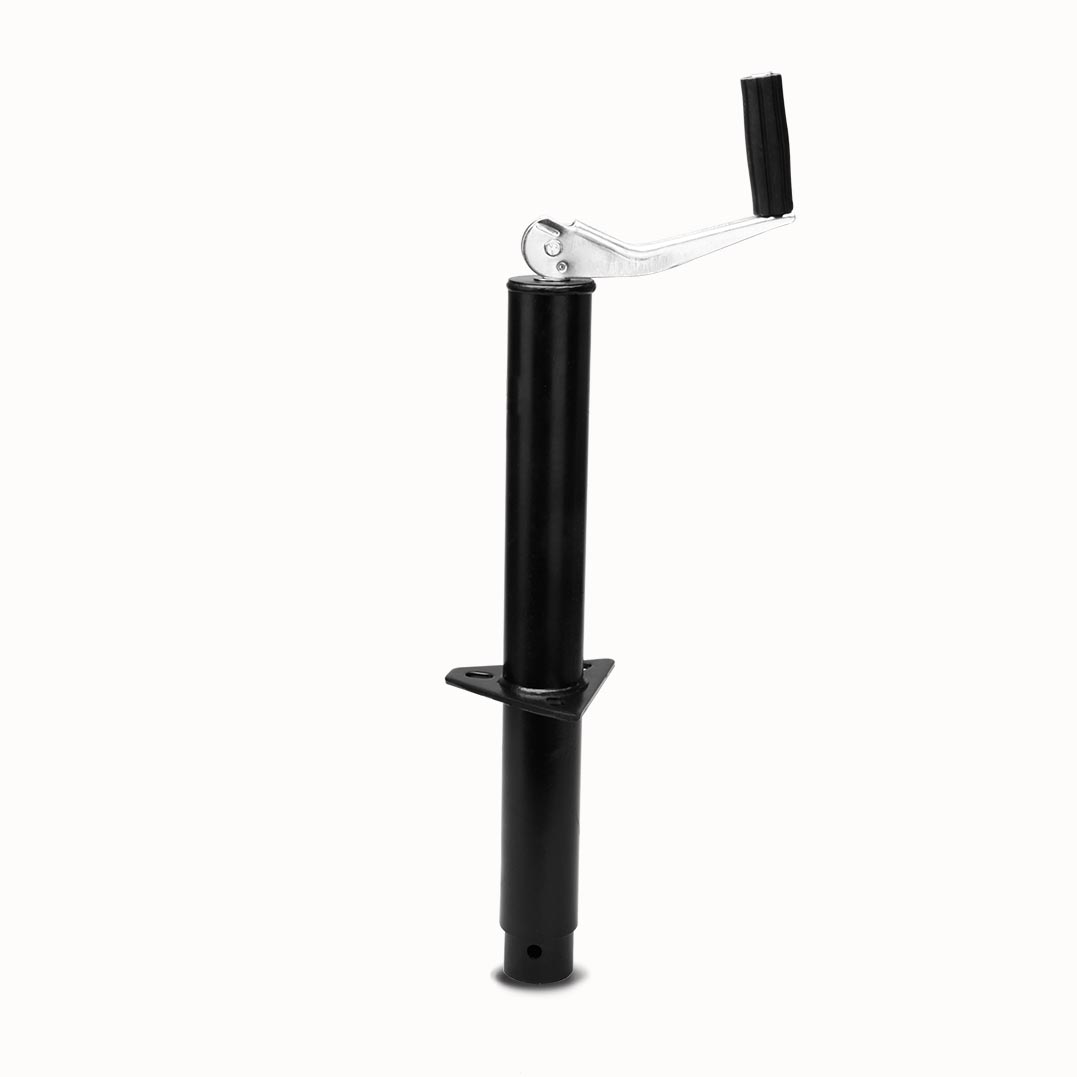

TOW-MAX A-frame jacks are designed specifically for A-frame trailers. They can be bolted or welded directly onto the trailer frame. Though they are not able to swing up and out of the way like TOW-MAX swivel jacks, A-frame jacks are made to retract completely to ensure enough clearance for safe travel.

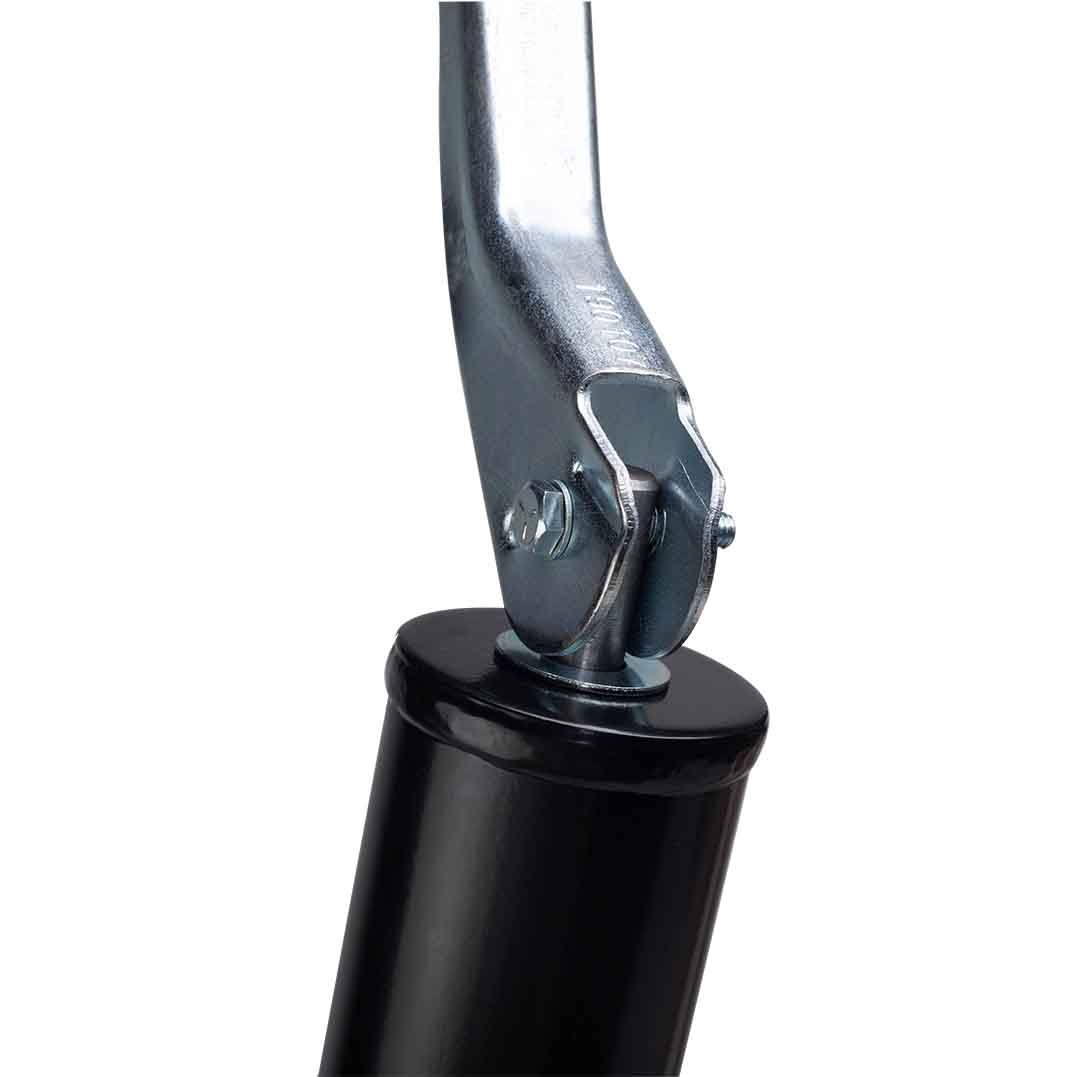

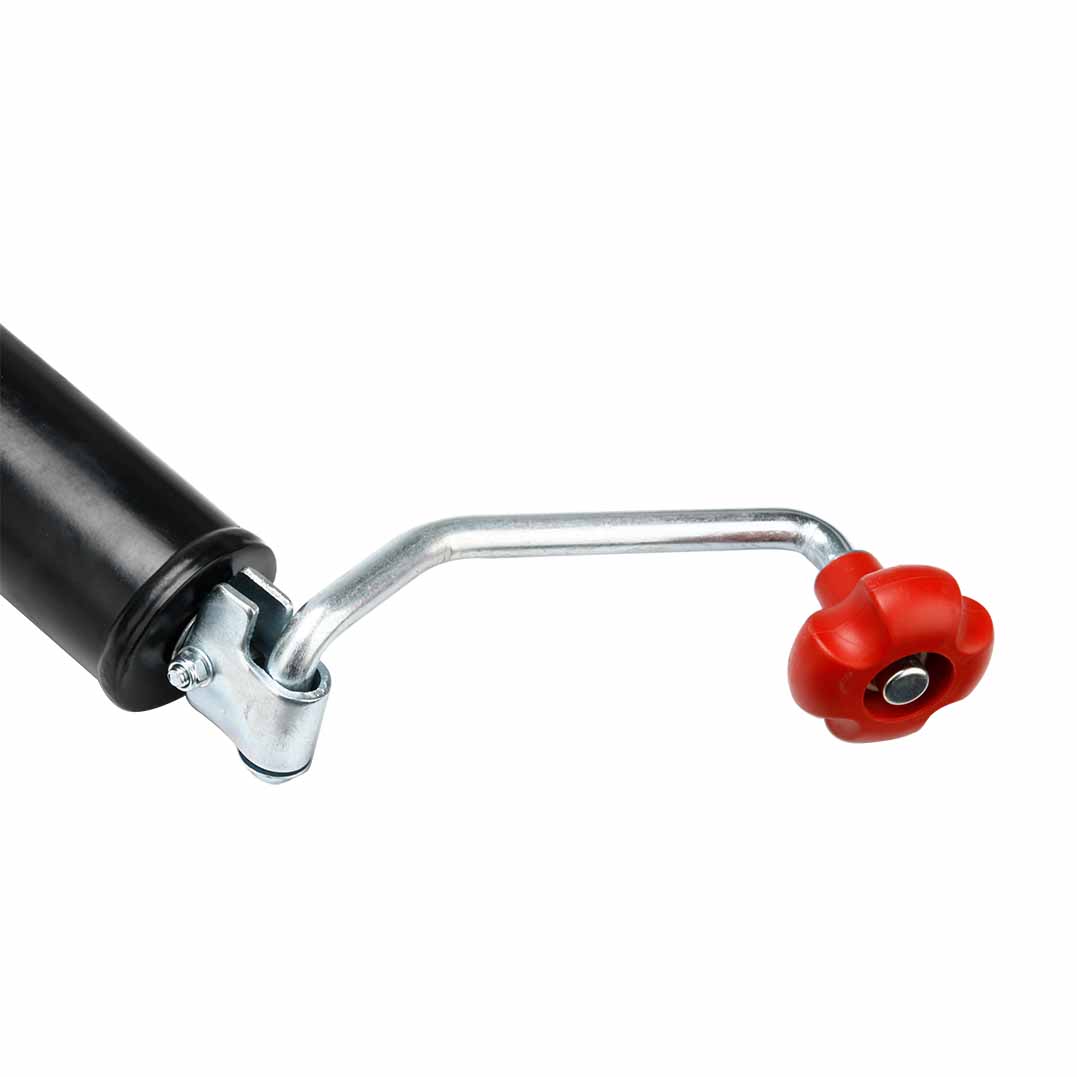

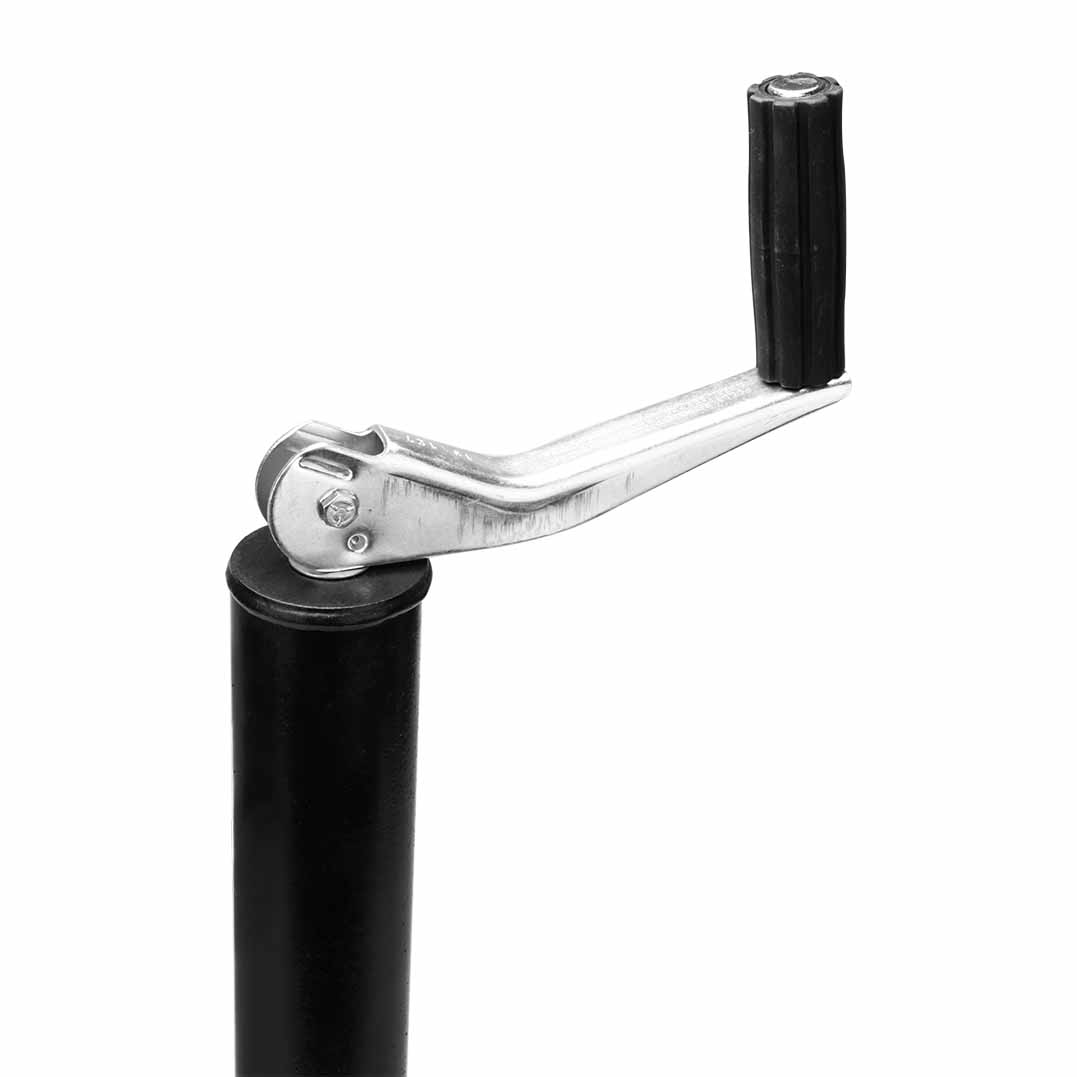

For TOW-MAX A-frame trailer jacks, they usually feature a weight capacity of 2,000 lbs and 5,000 lbs., When you choose one of them to use, please be noted that the 2,000 lbs series A-frame jacks have a static capacity of 3,000 lbs, while rated a lift capacity of 2,000 lbs, and the 5,000 lbs series A-frame jacks have a static capacity of 5,000 lbs, while it's rated a lift capacity of 3,000 lbs. not matter what kind of trailer you tow, you have to choose a right jack to use. 5,000 lbs topwind A-frame jacks are come with a comfortable claw knob on a clear zinc solid bar handle that can be folded away when not in use. and 2,000 lbs topwind A-frame jacks are come with a large black handle use a bolt-head fastener keeps the handle securely on the jack during operation.

Specifications

Product Code Capacity Handle Styles Travel Bracket Height (A) Retracted Overall Height (B) Finish Unit Wt. (lbs) Qty / Pallet
RJA2001B 2,000 lb Topwind 14″ 8-1/4″ 21-1/4″ black powder coating 9.05 200
RJA2001Z 2,000 lb Topwind 14″ 8-1/4″ 21-1/4″ clear zinc plated 9.05 200
RJA2002B 2,000 lb Topwind 14″ 5″ 21-1/4″ black powder coating 9.05 200
RJA2002Z 2,000 lb Topwind 14″ 5″ 21-1/4″ clear zinc plated 9.05 200
RJA2003B 2,000 lb Topwind 15″ 9-1/4″ 24-1/4″ black powder coating 10.6 200
RJA5001B 5,000 lb Topwind 15″ 10″ 22-3/4″ black powder coating 10.5 200
RJA5001Z 5,000 lb Topwind 15″ 10″ 22-3/4″ clear zinc plated 10.5 200

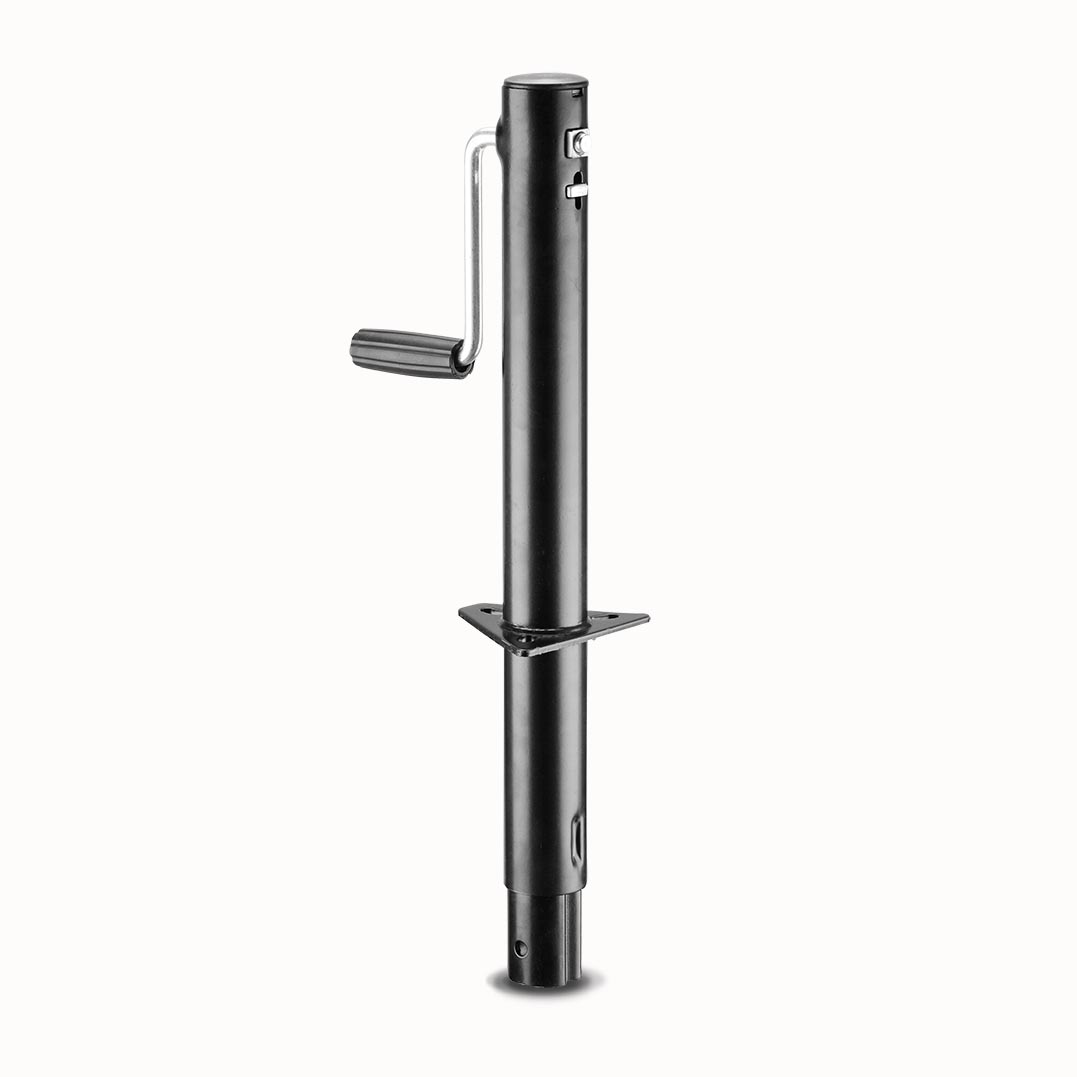

RJA2001SB 2,000 lb Sidewind 14-1/2″ 9-1/4″ 25″ black powder coating 11 200
RJA5001SB 5,000 lb Sidewind 14-1/2″ 9-1/4″ 25″ black powder coating 11 200
