Aus Type Jockey Wheels

Ideal use for boat trailer, box trailer, horse trailers or caravan as a retractable adjustable-height wheel

Home > Aus Type Jockey Wheels

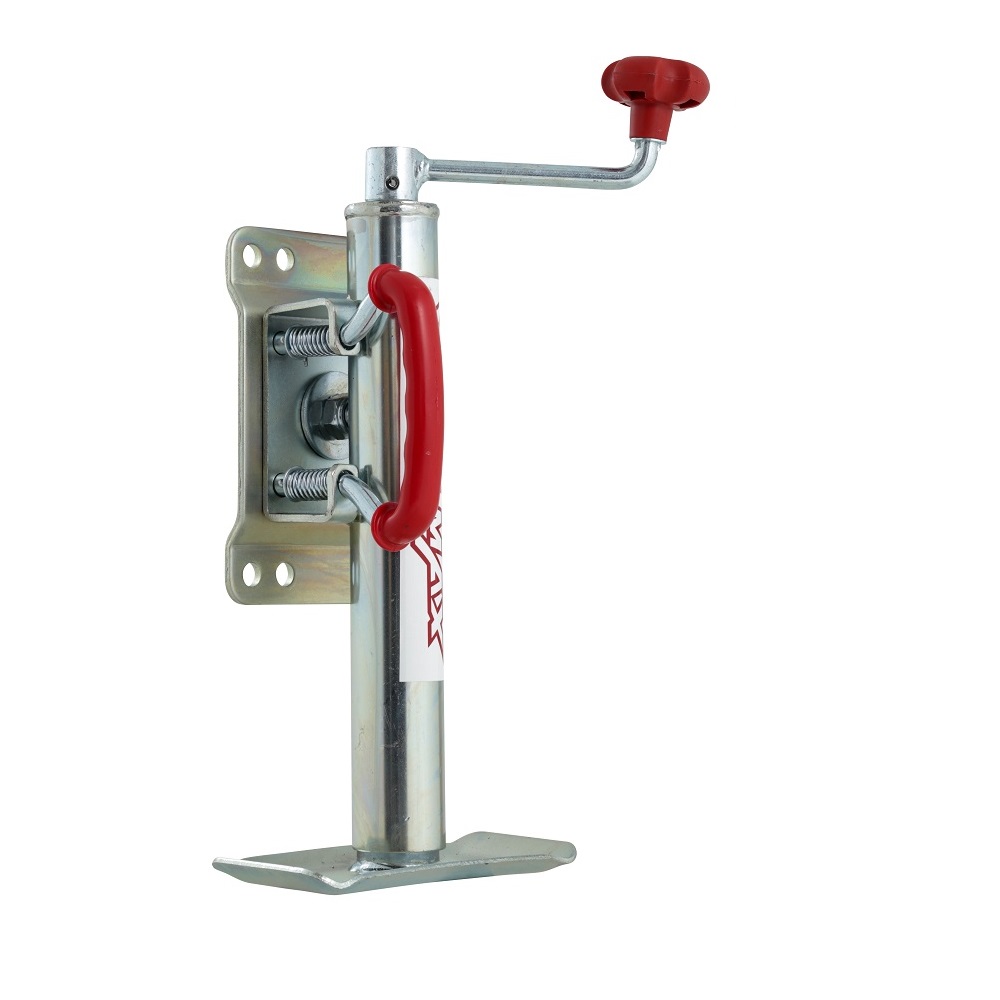

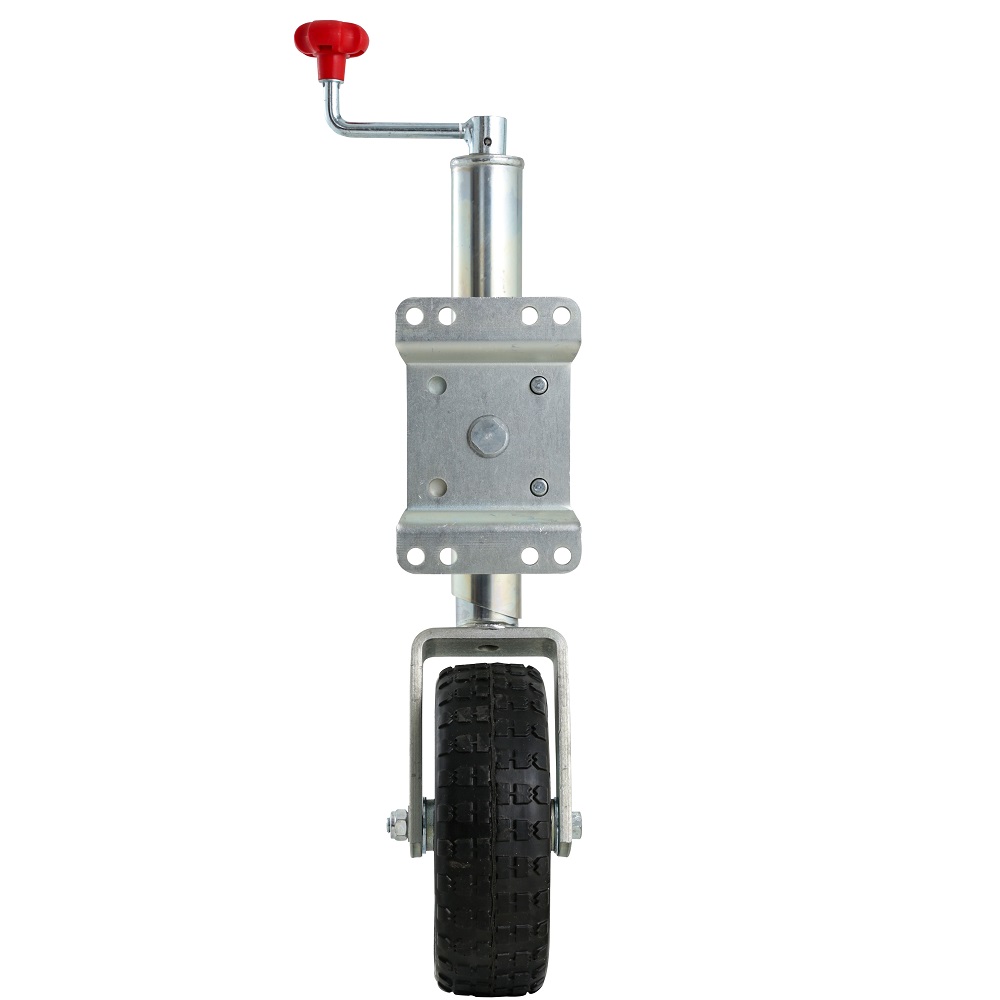

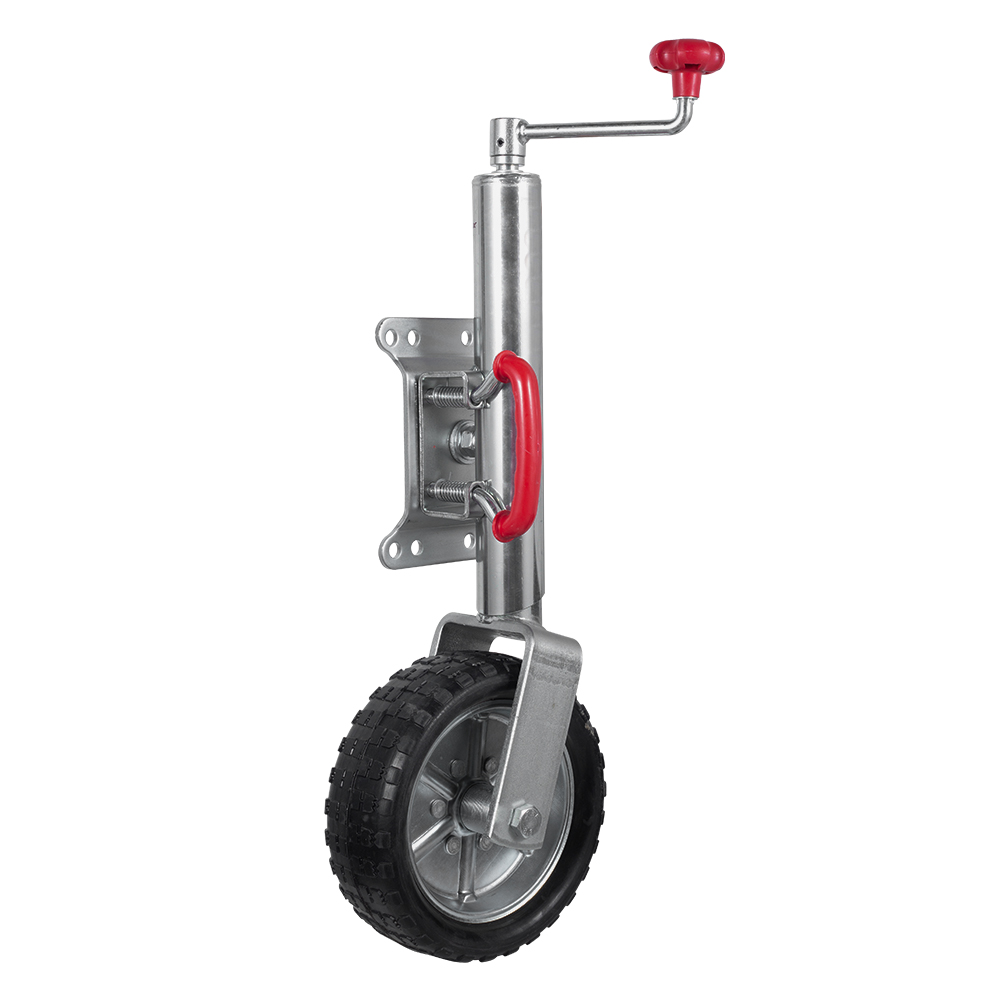

Aus type Jockey wheels

Features
  • Topwind models come with high quality and durable zinc coated outer and inner tube

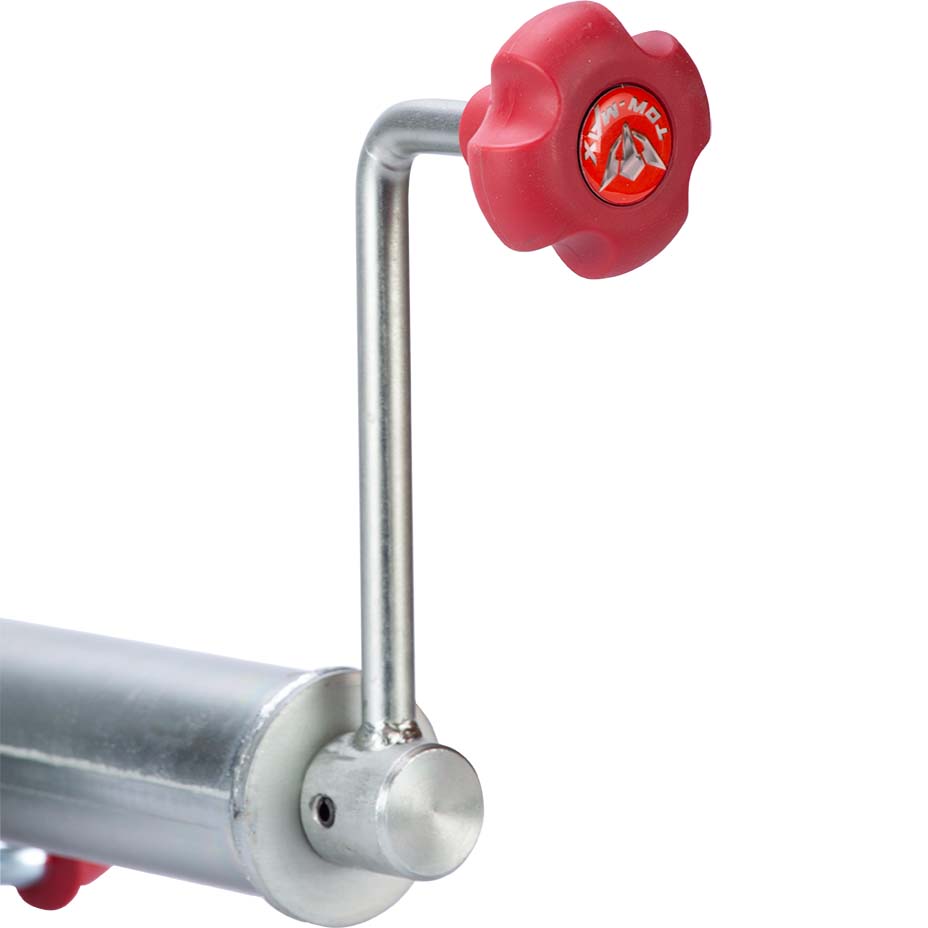

  • 10” inch extension with a flexible winding handle

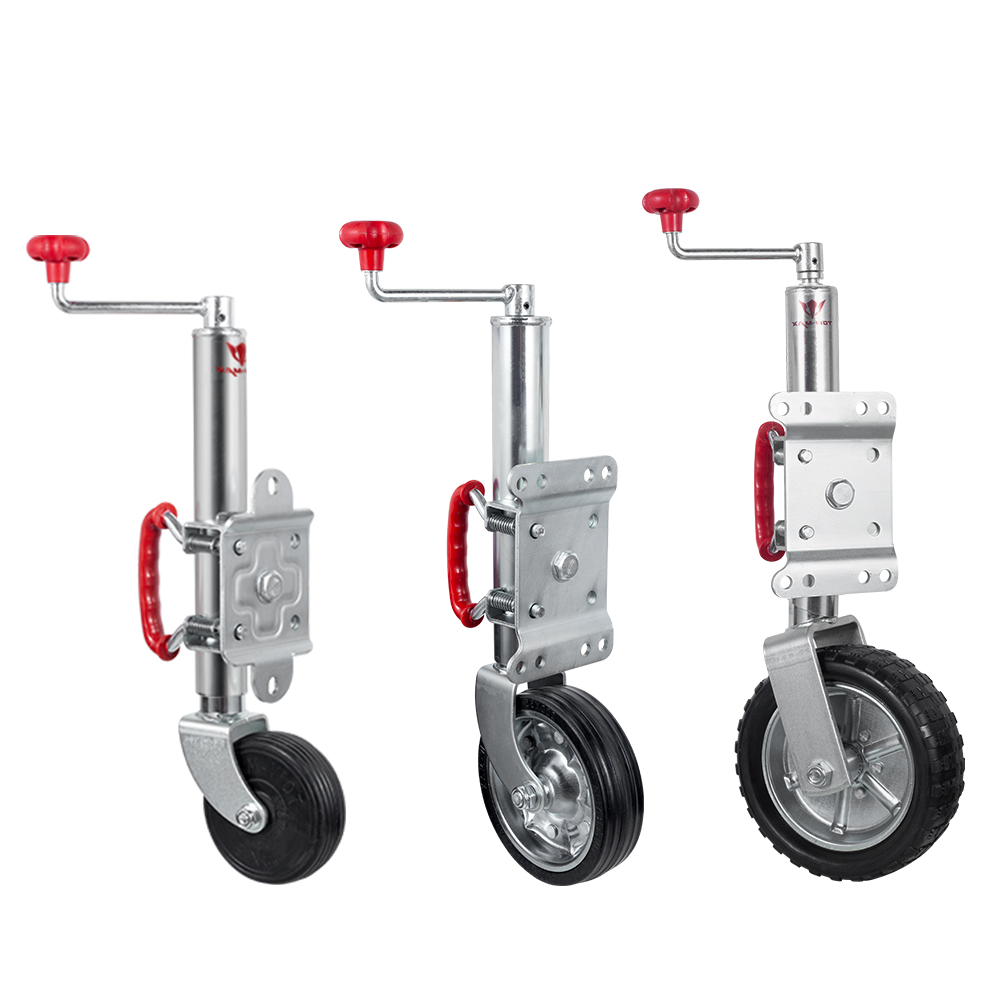

  • 6”, 8” and 10” Solid rubber wheels offer smooth and comfortable moving with your trailer
  • 250 kg to 500 kg series for option

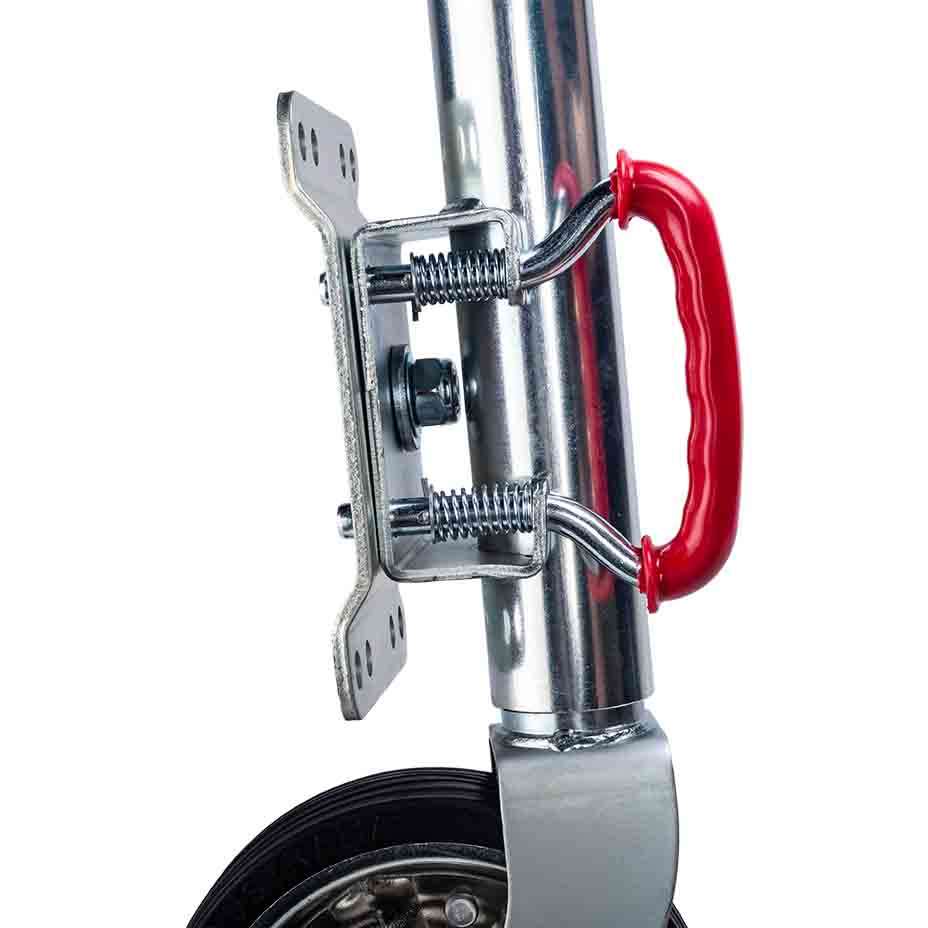

  • Large latch handle for easy pulling
Get A Quote

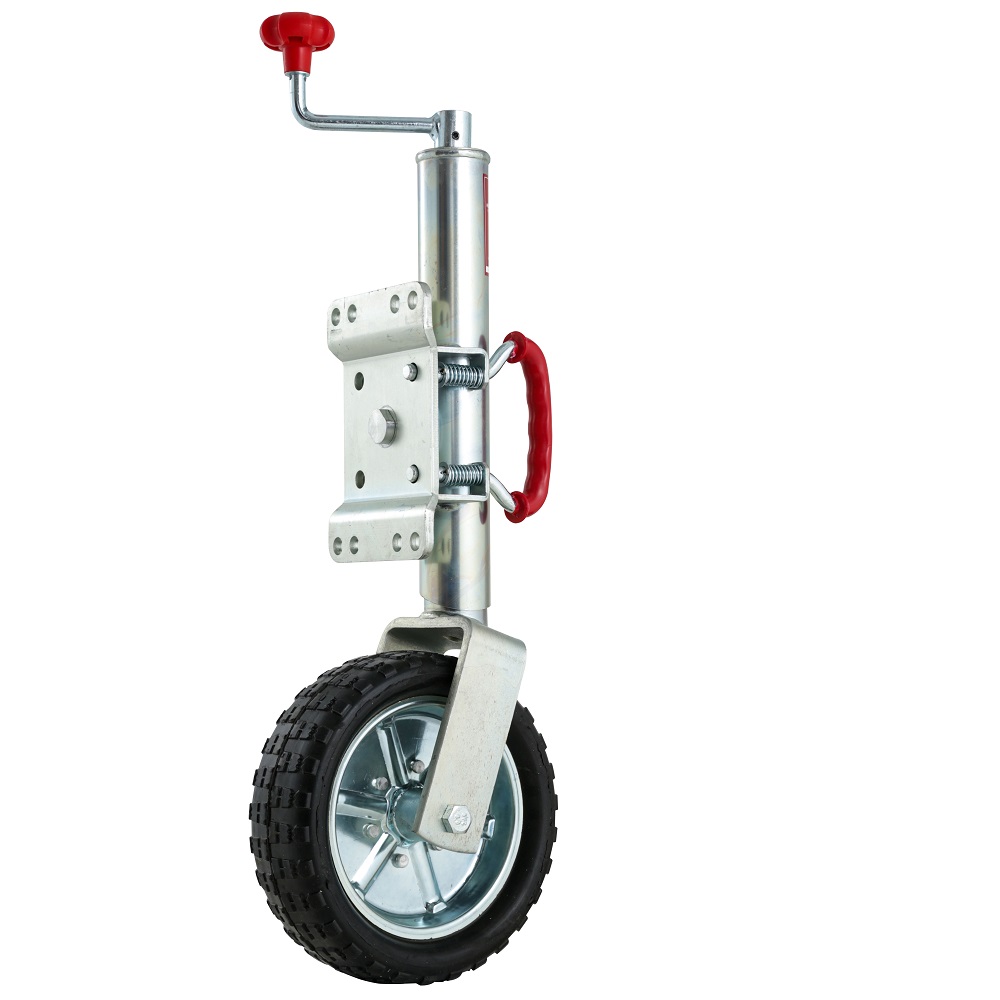

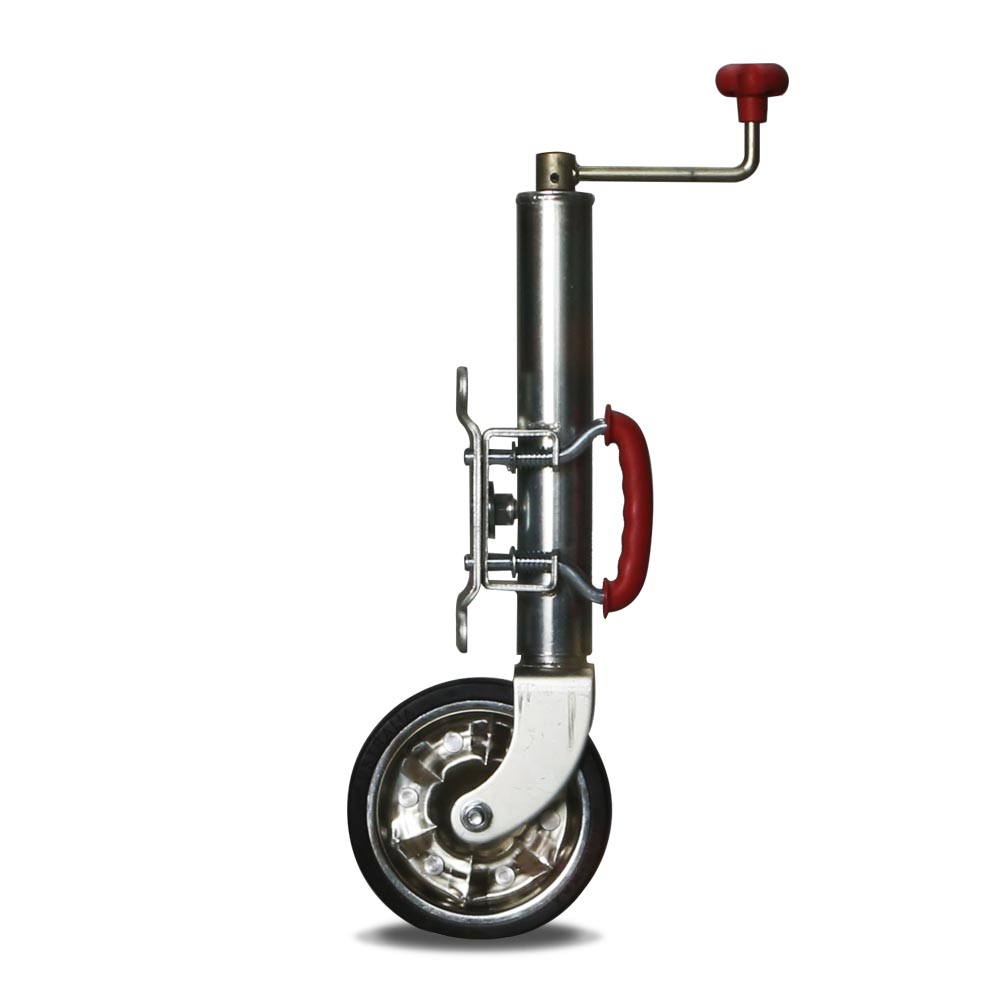

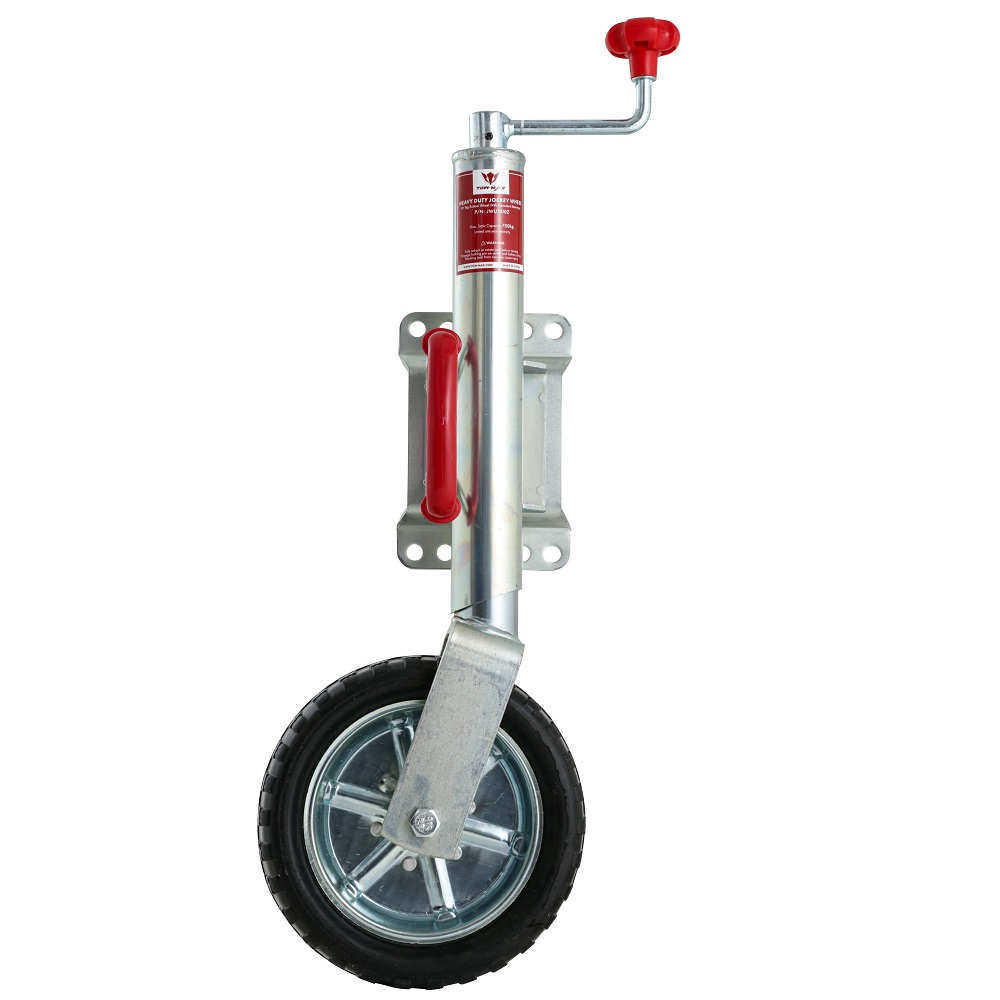

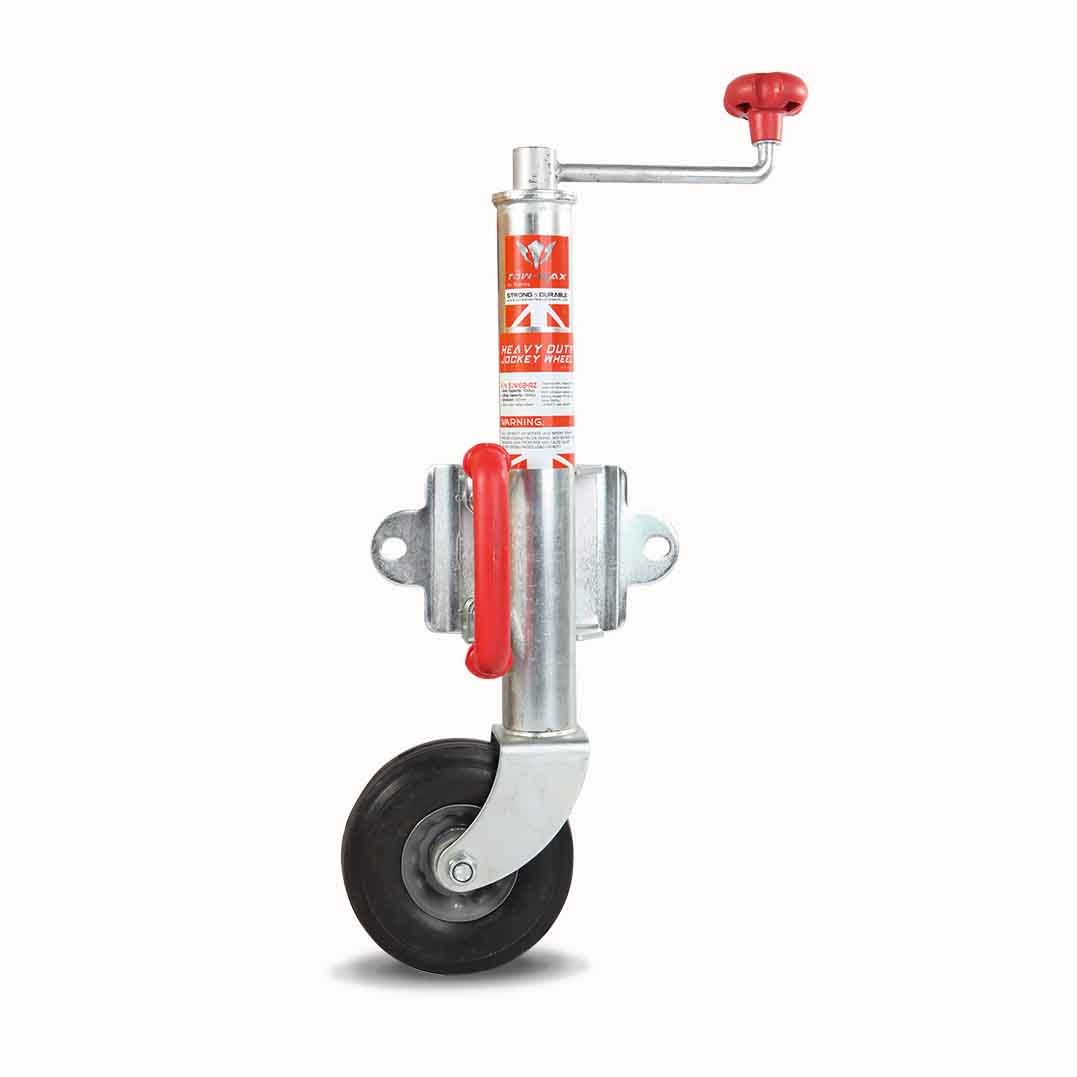

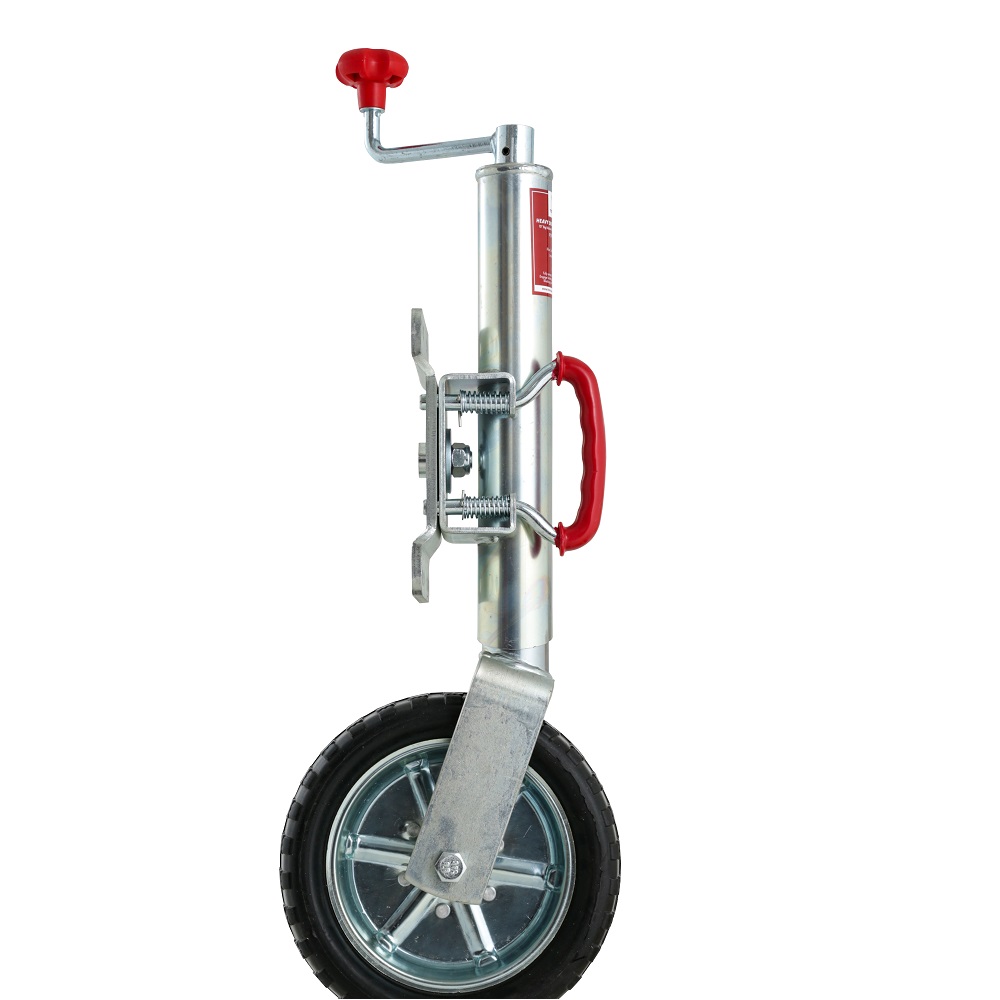

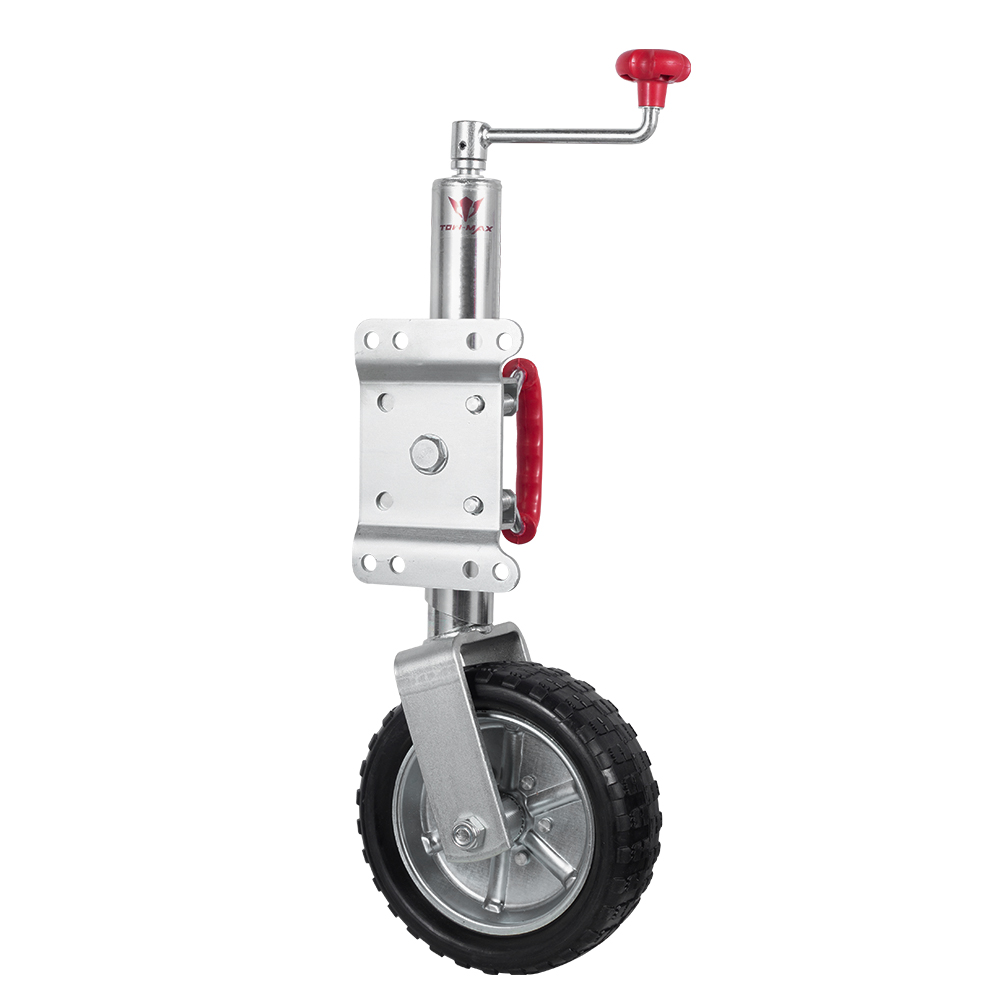

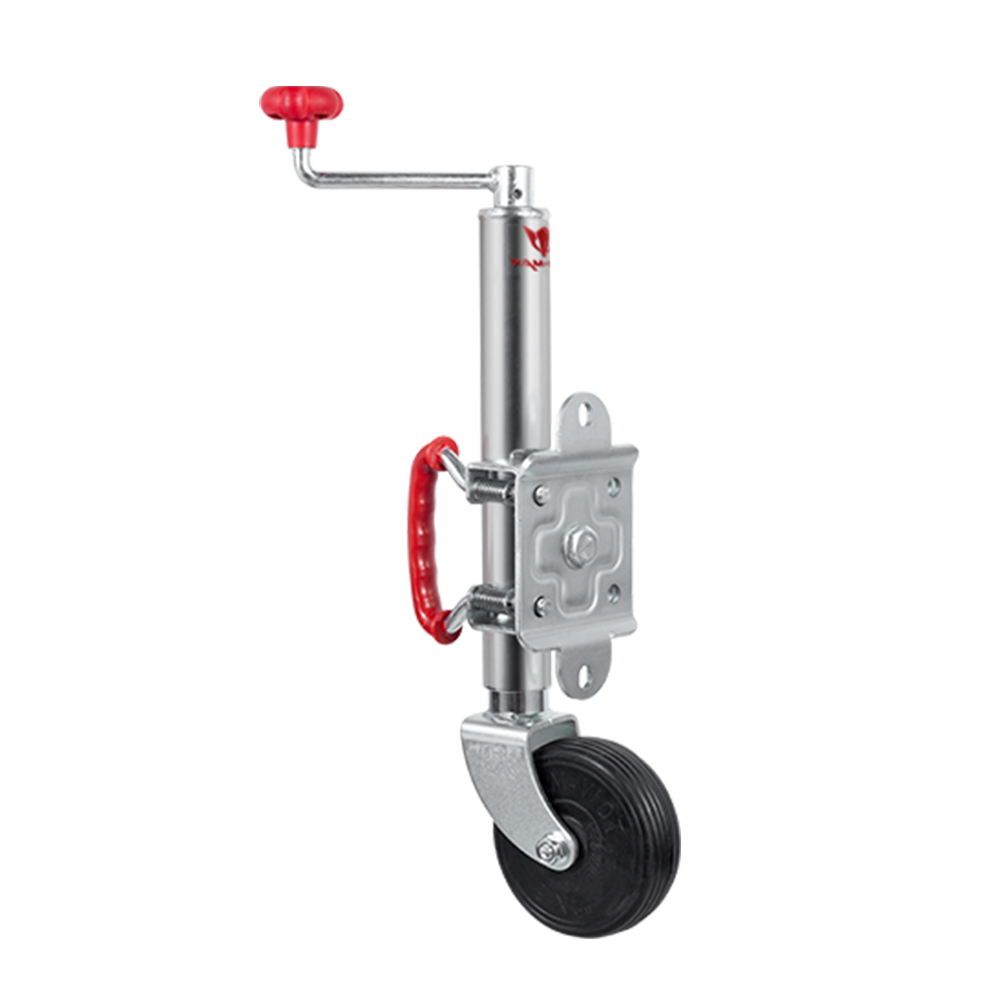

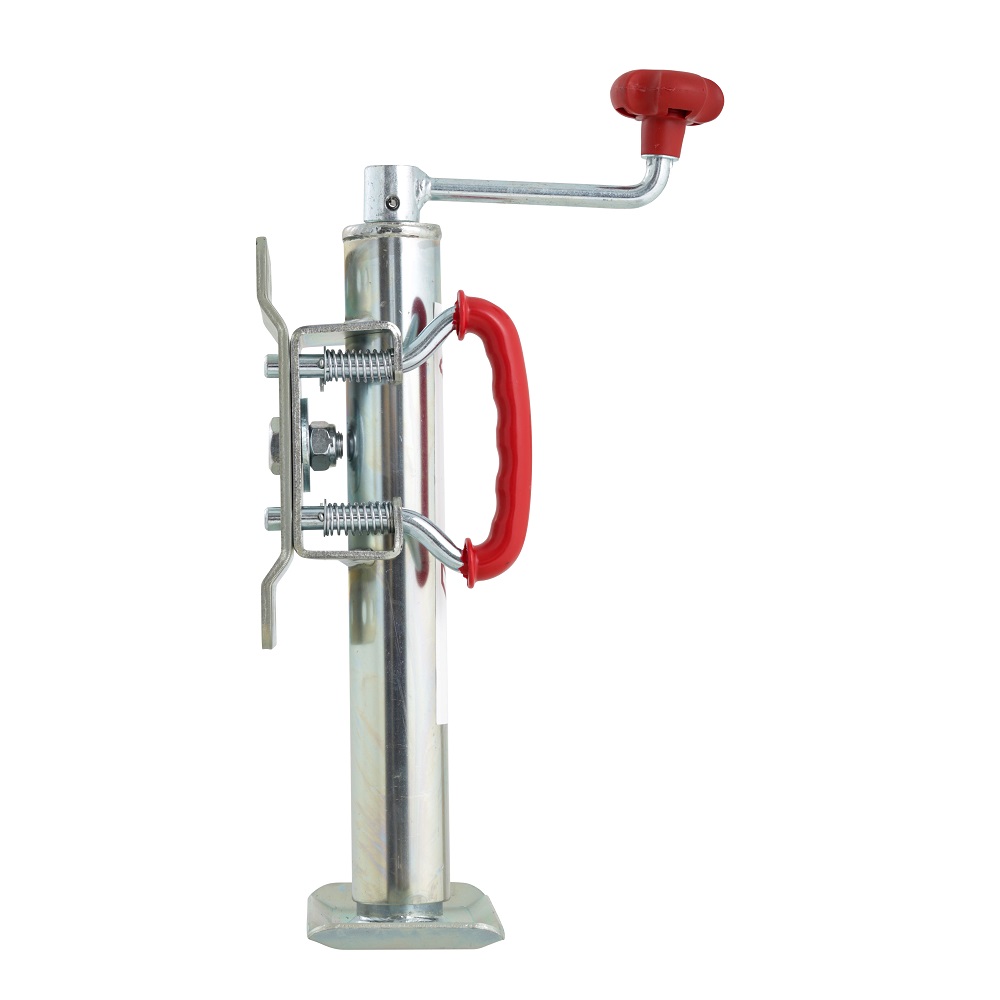

TOW-MAX manufactured Australian type jockey wheels have a good performance in use, with it's strong and durable designed construction, it offers a perfect solution for different types of the trailers like boat trailers, light camper trailers, box trailers, and horse trailers.

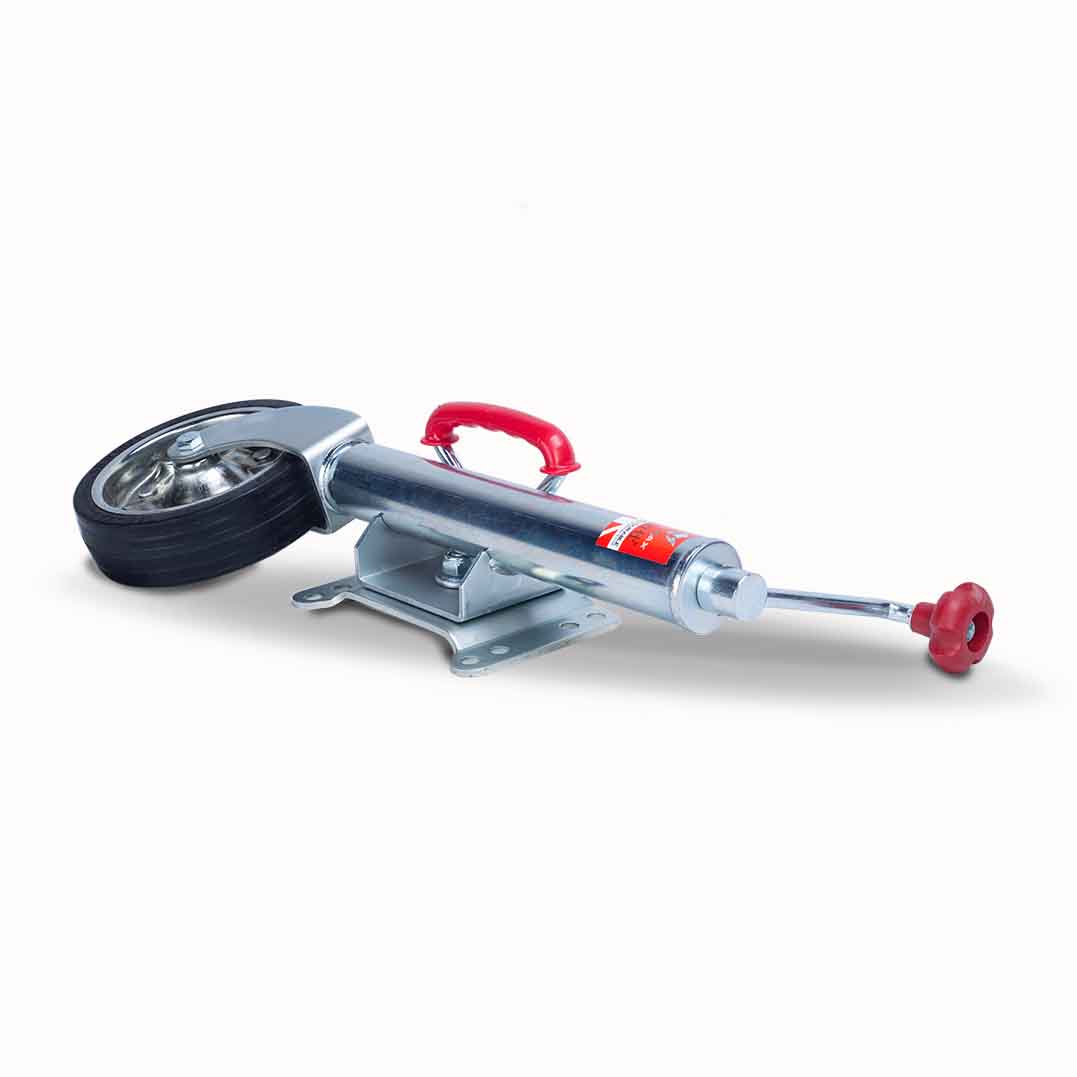

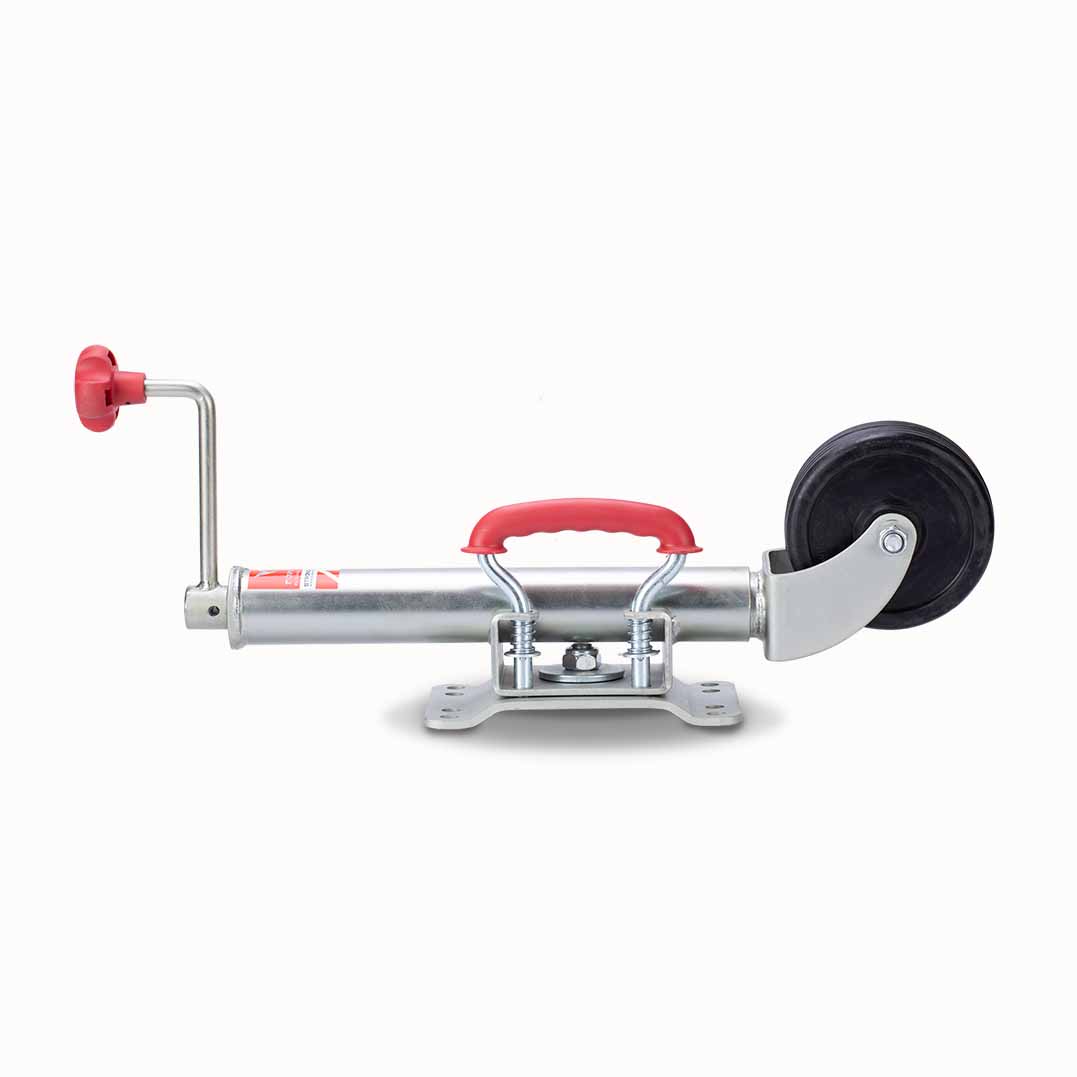

The TOW-MAX swing up jockey wheels are usually rated to 500kg and has a 250mm extension. Its flexible rotation inner tube and wheel, makes this unit easy for moving and turning. Both high-quality zinc plating and galvanizing make it used for last.

Specifications

Product Code Support Capacity Handle Styles Travel Retracted Bracket Height Swivel Bracket Type Rubber Wheel Size Finish Unit Wt. (kgs) Qty/Pallet
JWB2506Z 250 kgs Topwind 10″ 280 mm 2 HOLES 6″x2″ disc rubber clear zinc plated
JWU2506Z 250 kgs Topwind 10″ 340 mm 8 HOLES 6″x2″ disc rubber clear zinc plated
JWB5006Z 500 kgs Topwind 10″ 280 mm 2 HOLES 6″x2″ rubber clear zinc plated
JWU5006Z 500 kgs Topwind 10″ 340 mm 8 HOLES 6″x2″ rubber clear zinc plated
JWB5008Z 500 kgs Topwind 10″ 280 mm 2 HOLES 200 x 55mm disc clear zinc plated
JWU5008Z 500 kgs Topwind 10″ 340 mm 8 HOLES 200 x 55mm disc clear zinc plated
JWU7510Z 750 kgs Topwind 10″ 8 HOLES 10″ rubber wheel clear zinc plated
JWC2506Z 250 kgs Topwind 10″ Clamp 6″x2″ rubber clear zinc plated
RW2506 250 kgs 6″x2″ disc rubber Replacement rubber wheel
RW5006 500 kgs 6″x2″ rubber replacement rubber wheel
RW5008 500 kgs 200 x 55mm disc replacement rubber wheel
RW7510 750 kgs 10″ rubber wheel replacement rubber wheel
