• Effective and durable suspension system
• High quality and larger bushing in eyes
• Suitable for both single axle and tandem axle trailers
• High load capacity and provide a comfortable ride
• Durable black finishing

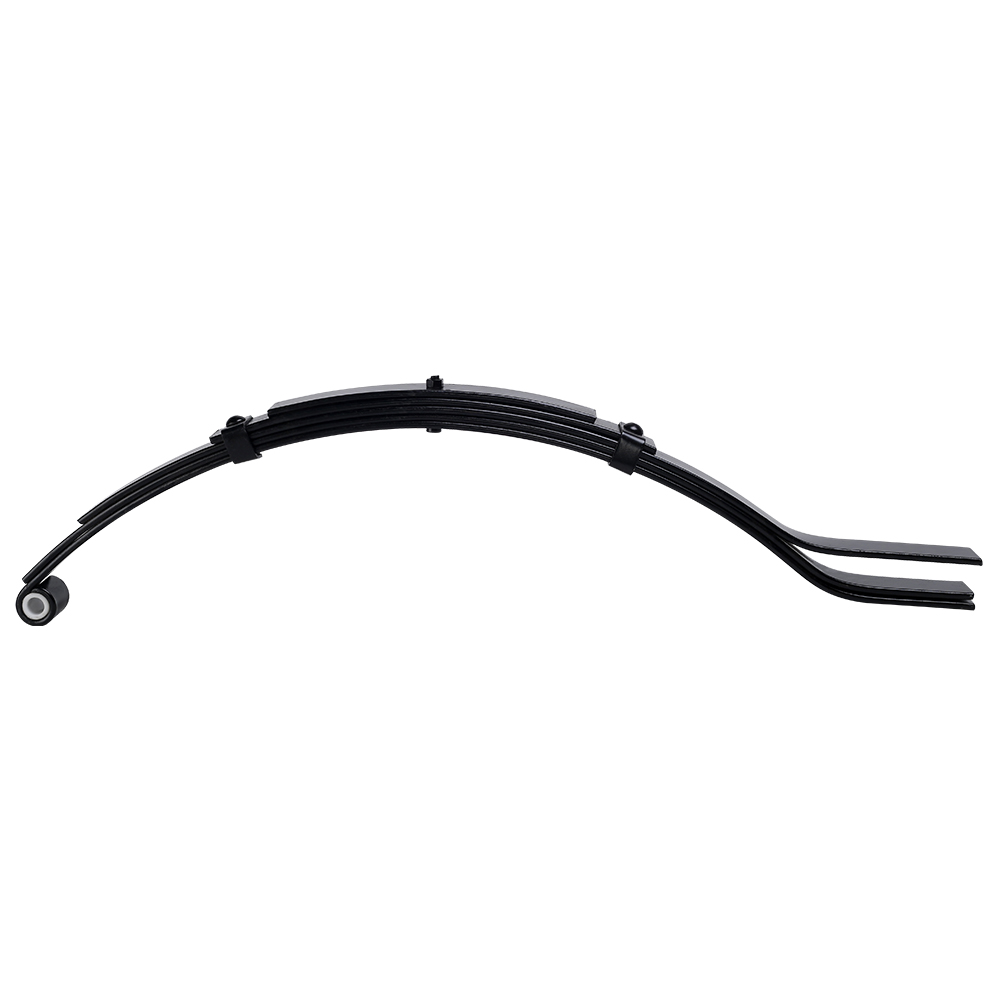

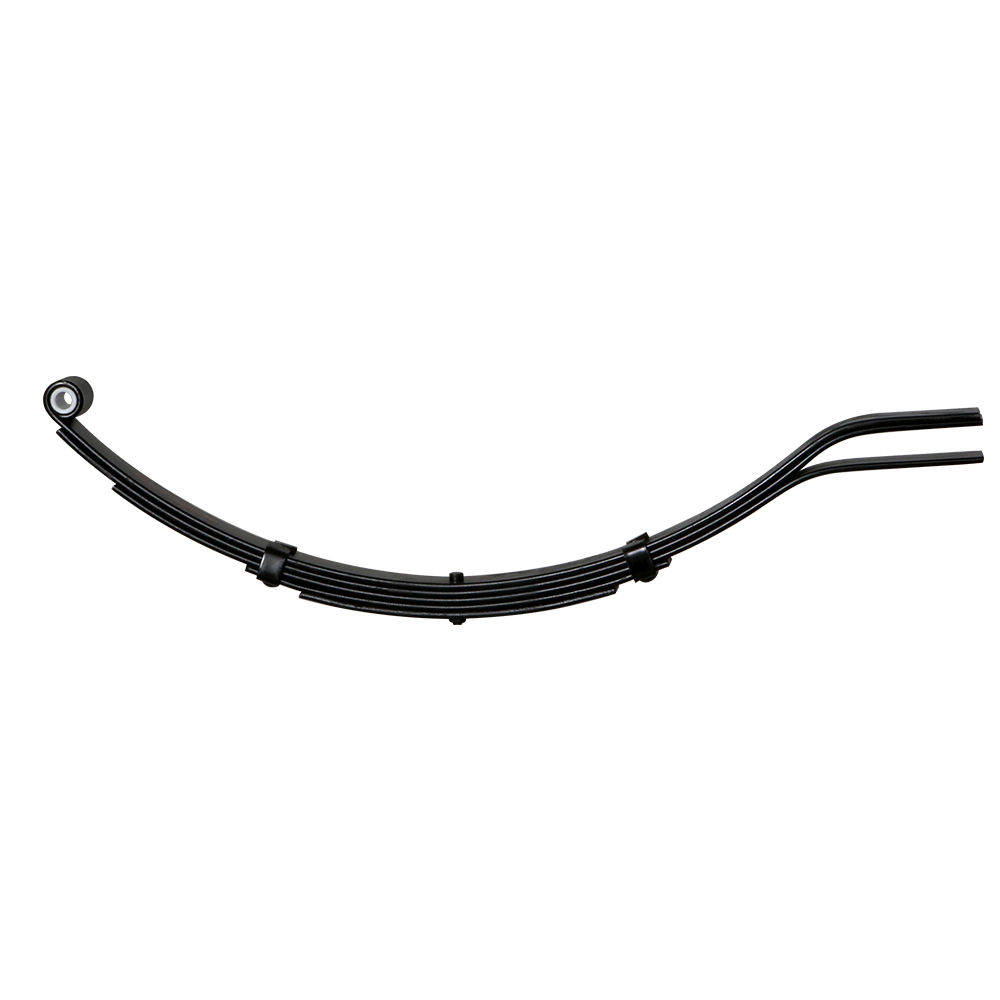

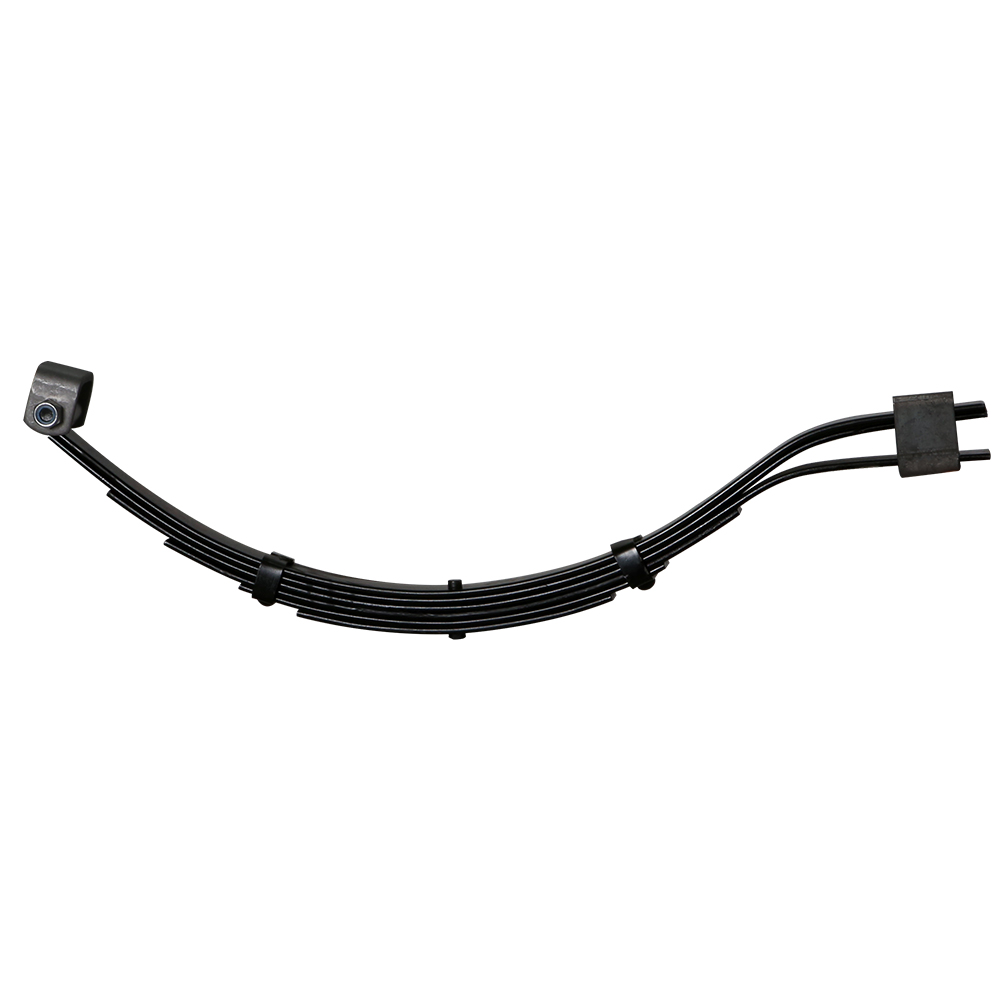

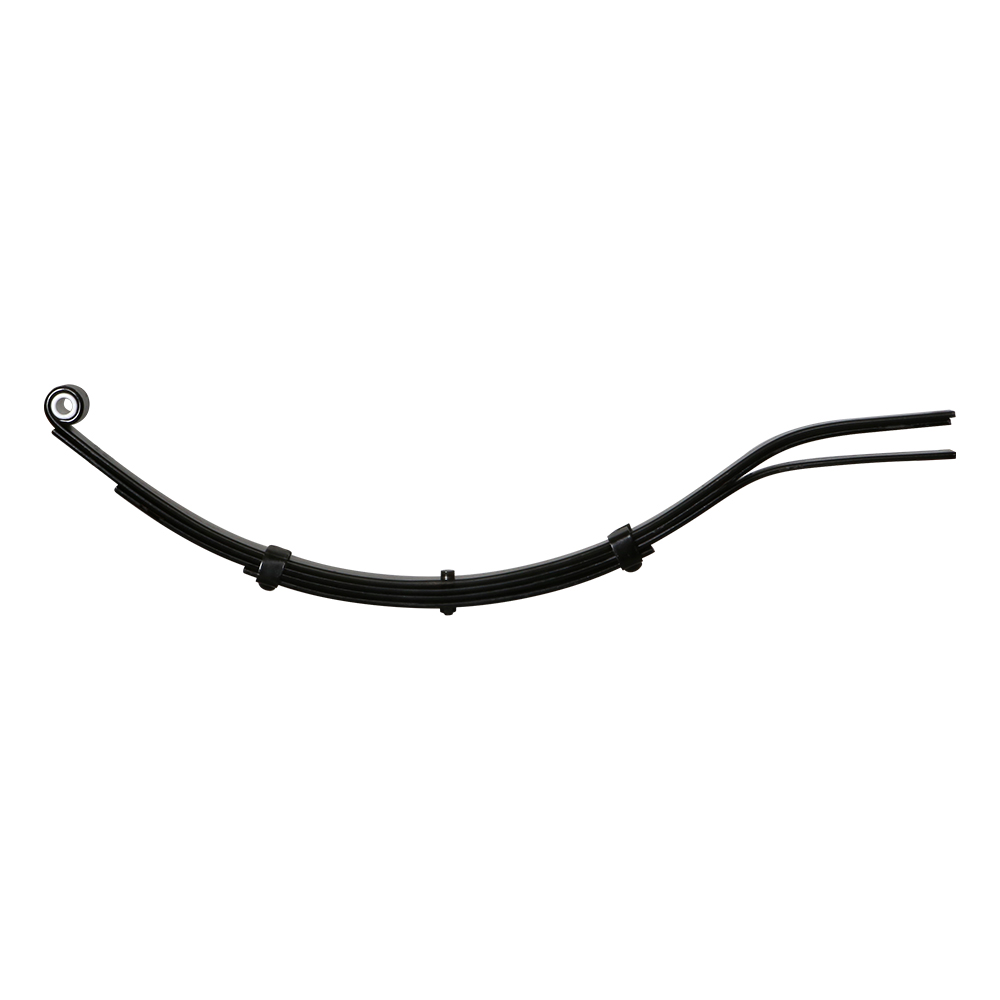

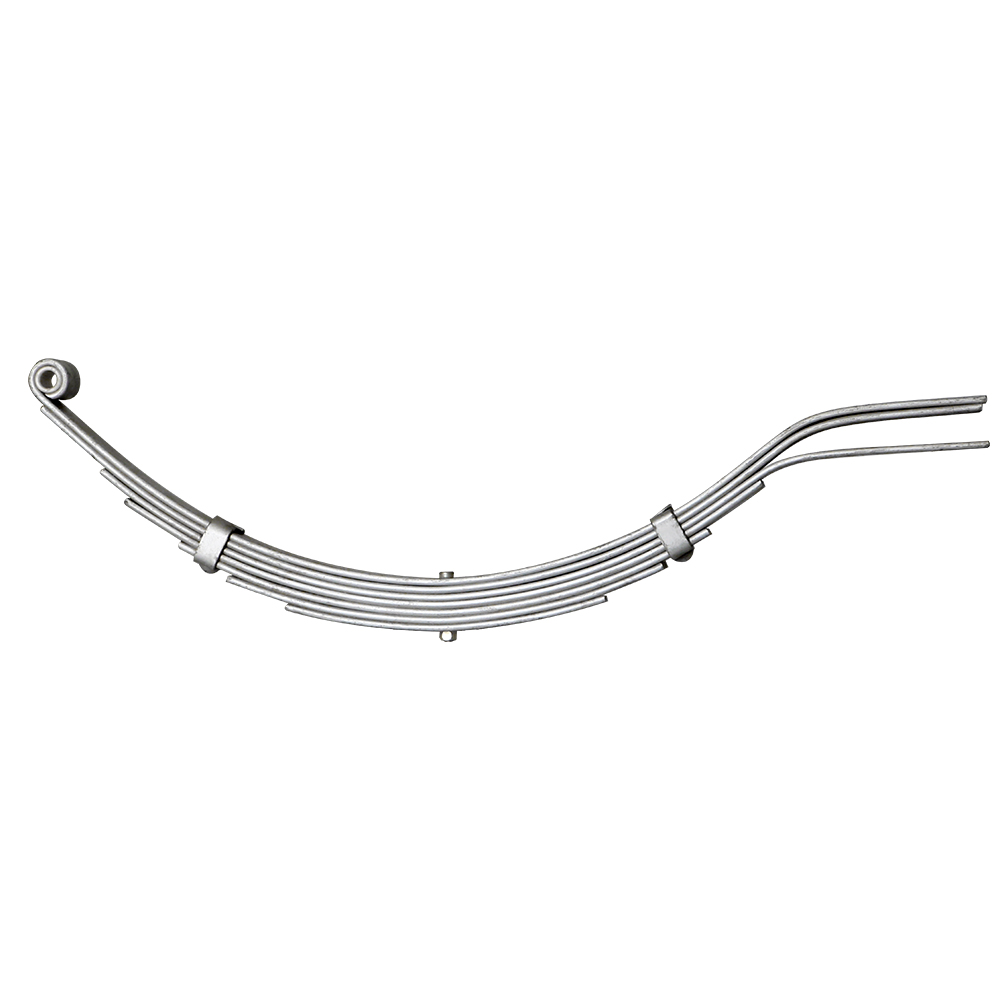

Tow-Max produces slipper springs that are both simple and long-lasting. The slipper spring has an eye on one end and loose leaves on the other end that forms a ‘tail’ that slides in a hanger soldered to the trailer chassis. Slipper springs, linked sequentially or attached as independent sets, provide a low-cost solution to multi-axle trailer suspension.
This leaf spring is an excellent addition to your trailer to guarantee that you have a spring to absorb any road shock and improve the overall ride. It also helps to lessen the general wear and strain on your trailer. It’s always a good idea to replace your leaf springs or slipper springs in pairs.
| Product Code | Capacity KGS./Pair | No. OF LEAVES | Eye To Tail Length A | Free Camber C | Eye To Center Bolt | Leaf Size | Hanger Center | Bushing Eye ID | Finish |
| ES45306B | 600 | 3 | 765 | 150 | 330 | 45×6 mm | 700 | 1/2″ | Black |
| ES45409B | 900 | 4 | 765 | 150 | 330 | 45×6 mm | 700 | 1/2″ | Black |
| ES45510B | 1,000 | 5 | 765 | 150 | 330 | 45×6 mm | 700 | 1/2″ | Black |
| ES45612B | 1,200 | 6 | 765 | 150 | 330 | 45×6 mm | 700 | 1/2″ | Black |
| ES45713B | 1,350 | 7 | 765 | 150 | 330 | 45×6 mm | 700 | 1/2″ | Black |
| ES45816B | 1,600 | 8 | 765 | 150 | 330 | 45×6 mm | 700 | 1/2″ | Black |
| ES45918B | 1,800 | 9 | 765 | 150 | 330 | 45×6 mm | 700 | 1/2″ | Black |
| ES45308B | 850 | 3 | 711 | 110 | 350 | 45×8 mm | 645 | 1/2″ | Black |
| ES45411B | 1,100 | 4 | 711 | 110 | 350 | 45×8 mm | 645 | 1/2″ | Black |
| ES45513B | 1,350 | 5 | 711 | 110 | 350 | 45×8 mm | 645 | 1/2″ | Black |
| ES45615B | 1,500 | 6 | 711 | 110 | 350 | 45×8 mm | 645 | 1/2″ | Black |
| ES45717B | 1,700 | 7 | 711 | 110 | 350 | 45×8 mm | 645 | 1/2″ | Black |
| ES50309B | 960 | 3 | 522 | 117 | 236 | 50×7 mm | – | 1/2″ | Black |
| ES50412B | 1,280 | 4 | 522 | 117 | 236 | 50×7 mm | – | 1/2″ | Black |
