Pipe Mount Round Tube Jack

Ideal for use with ag, industrial, commercial, recreational and many other types of trailers.

Home > Pipe Mount Round Tube Jack

Pipe Mount Round Tube Jacks

Features
  • Available with a durable black powder coat outer tube and with a durable zinc finish inner tube or with a durable clear zinc finish outer and inner tubes

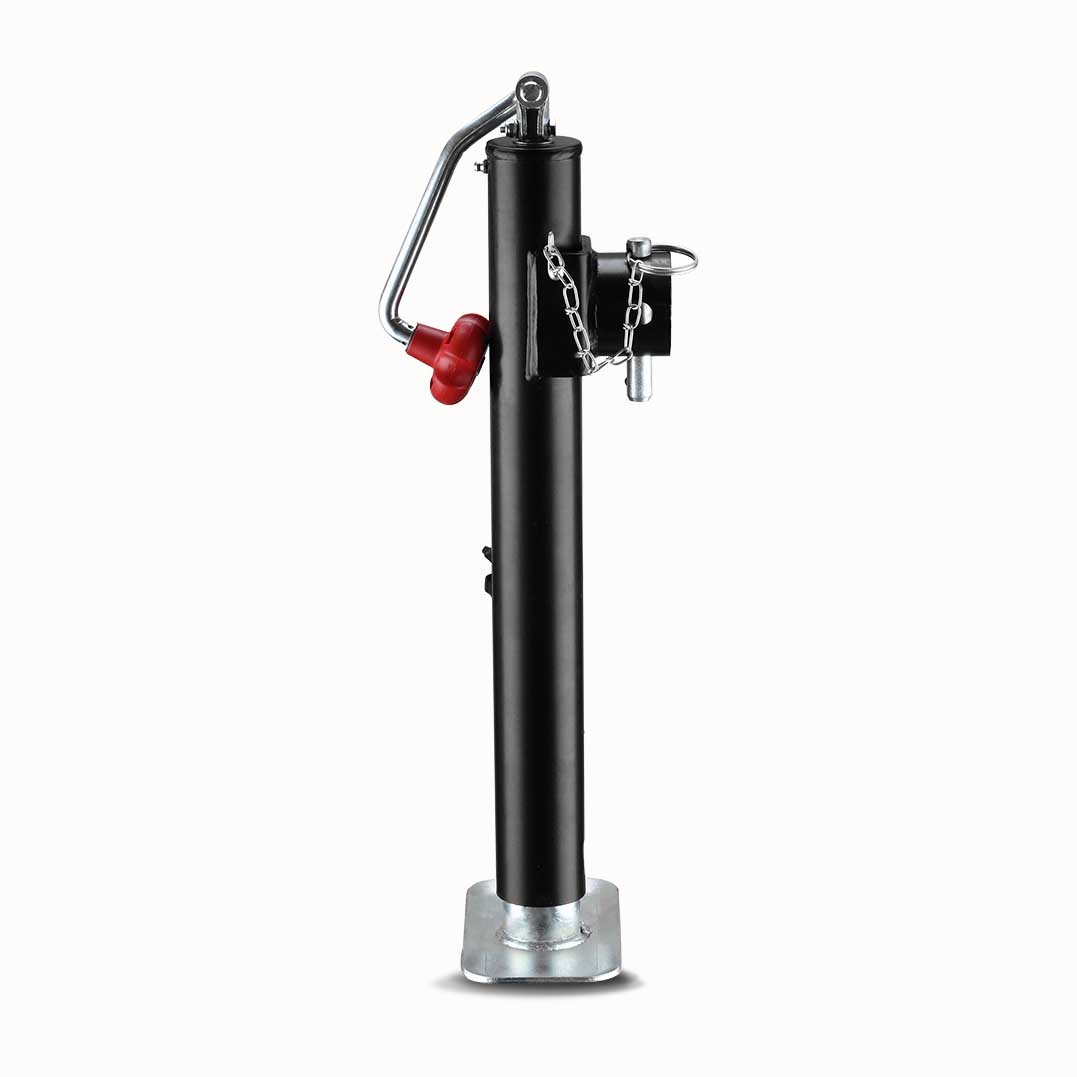

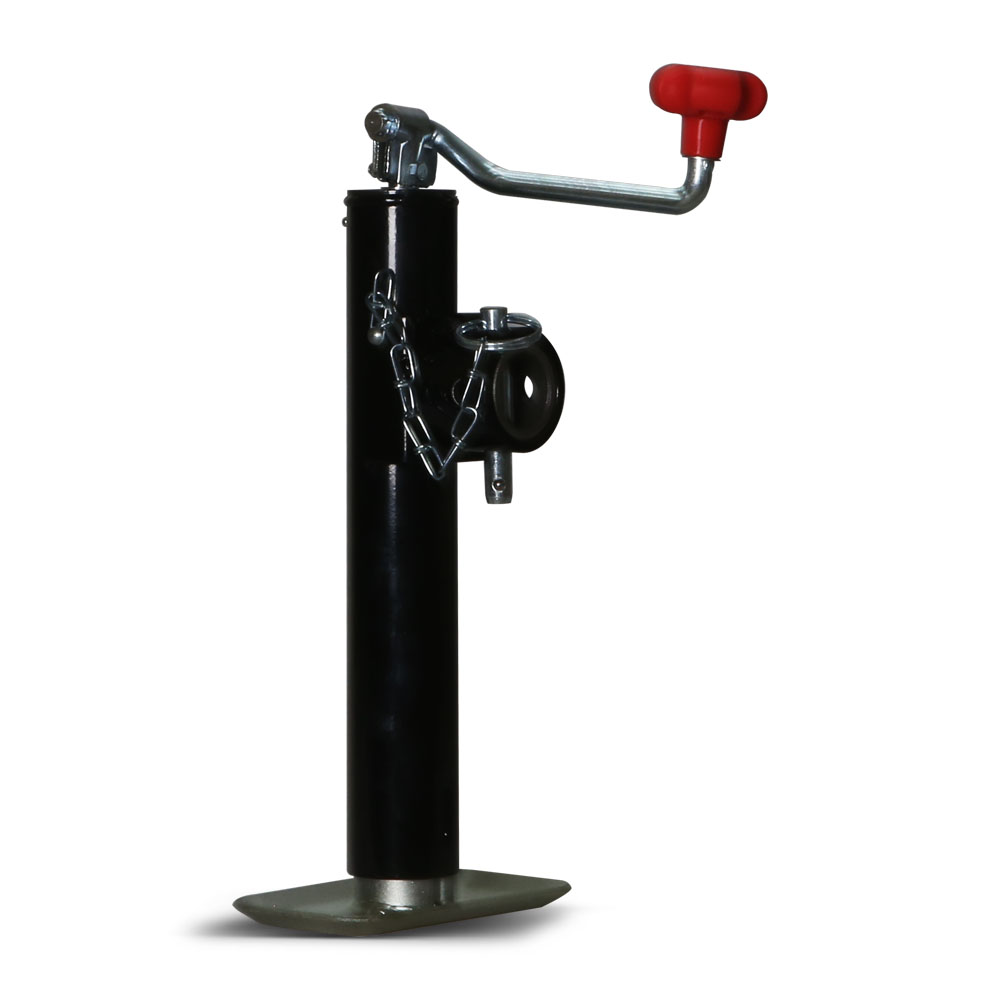

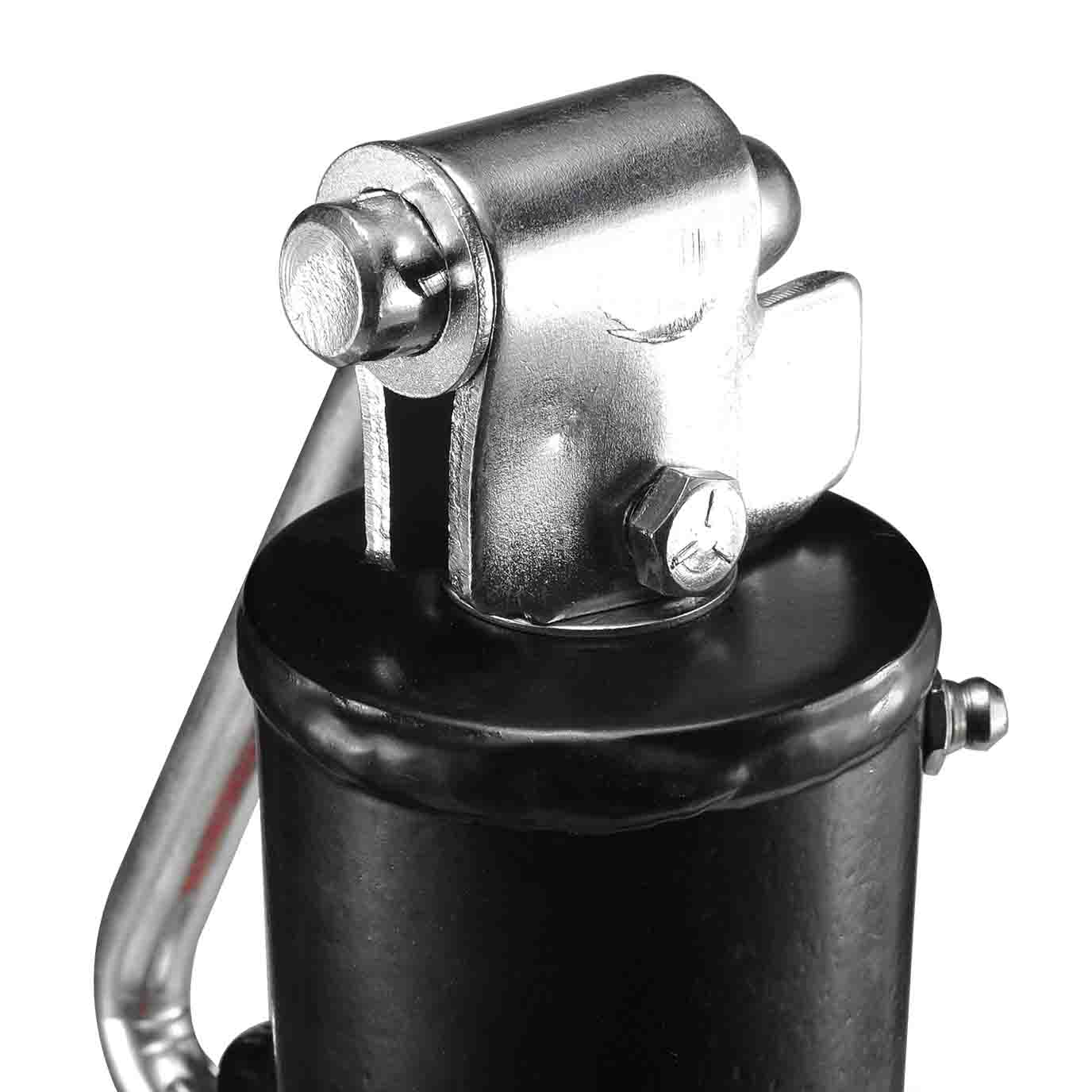

  • Top wind models come standard with a comfortable claw knob on a clear zinc solid bar handle that can be folded away when not in use

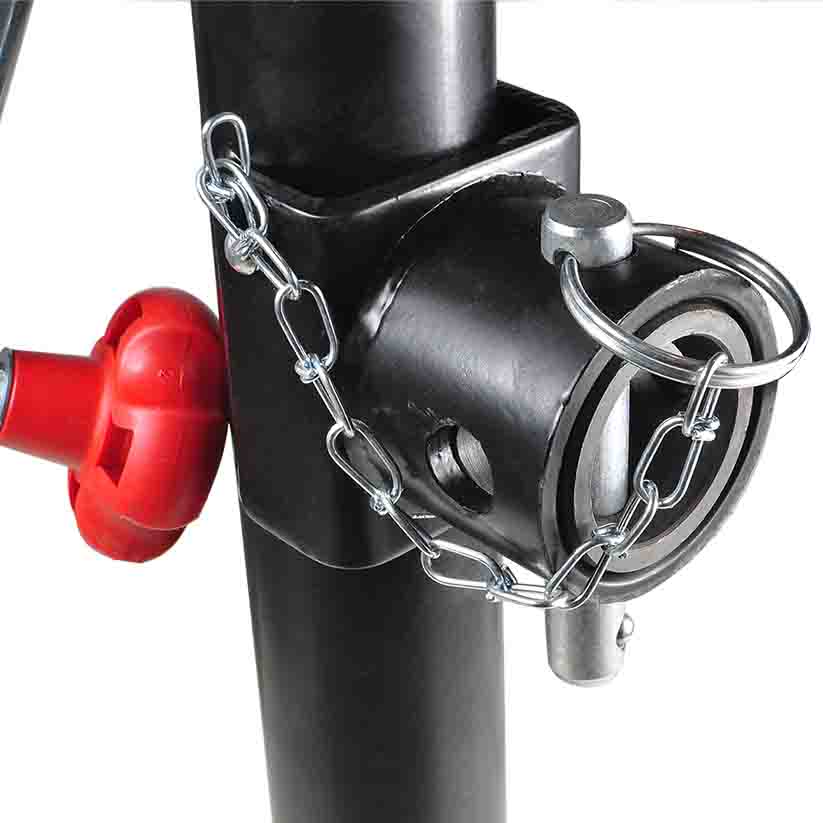

  • Pull-pin keeps jack securely locked in place
  • Grease zerk for easy greasing of jack
  • Typical gear ratios designed to reduce the numbers of turns
  • A wide range of load capacity according to trailer requirements.
  • One-year limited lifetime warranty
Get A Quote

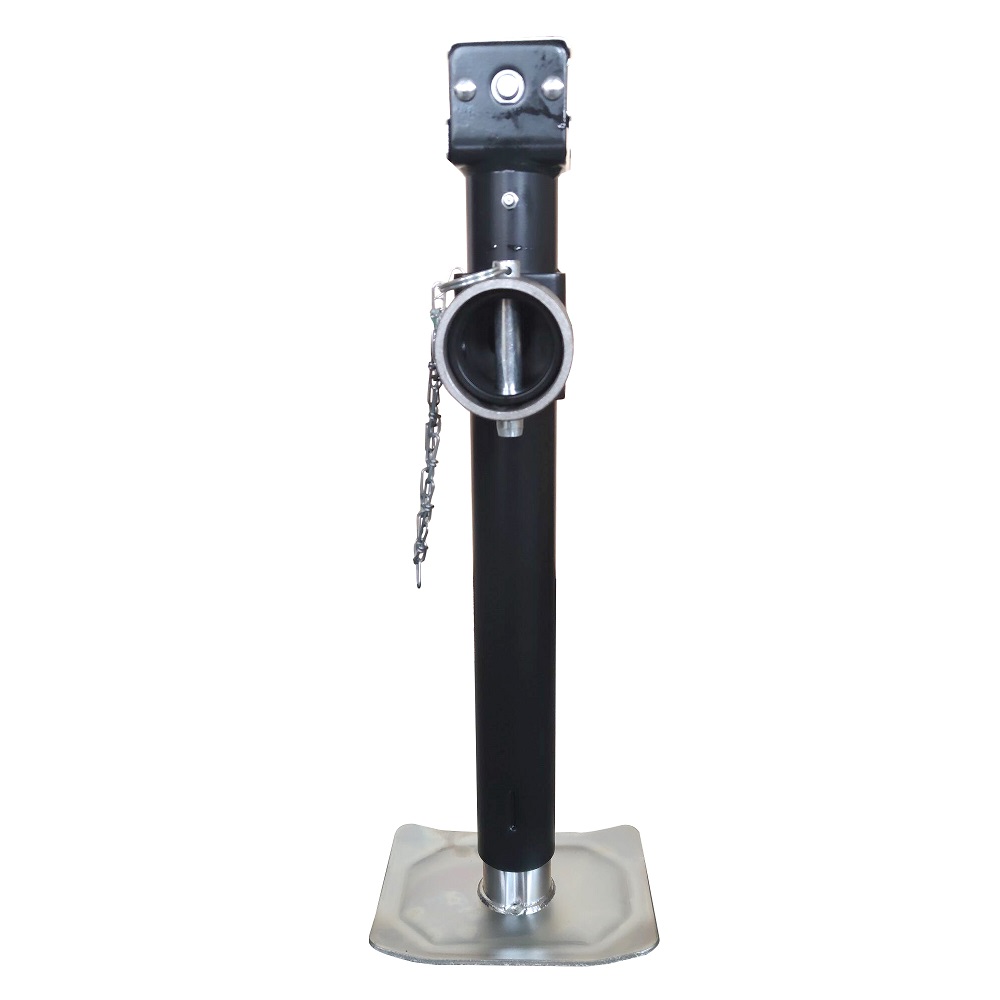

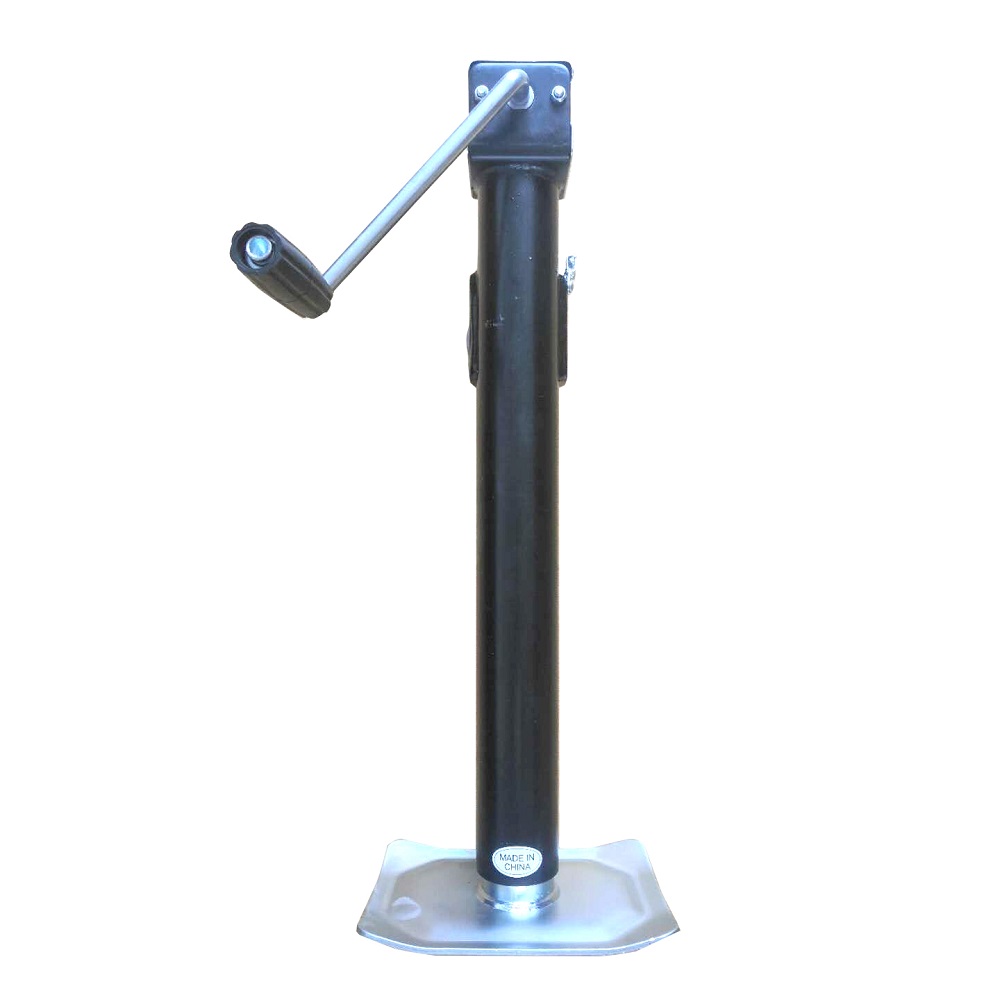

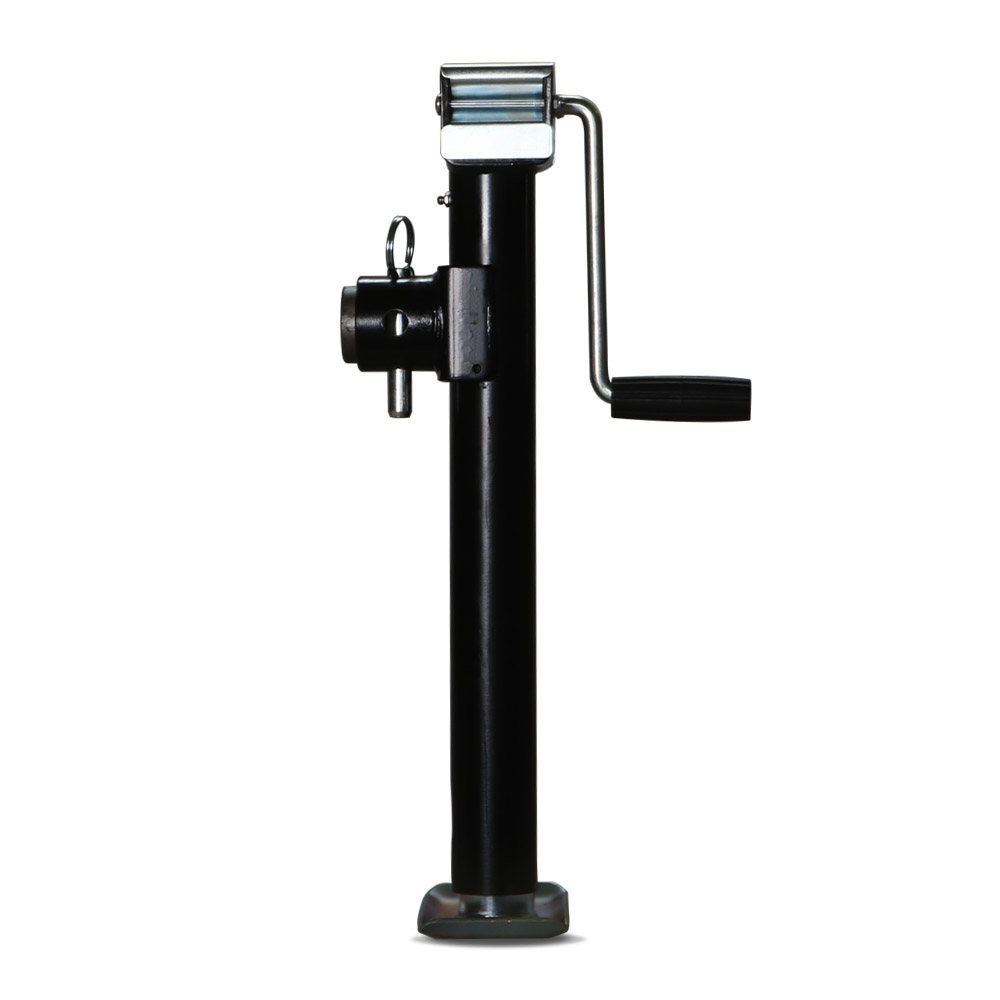

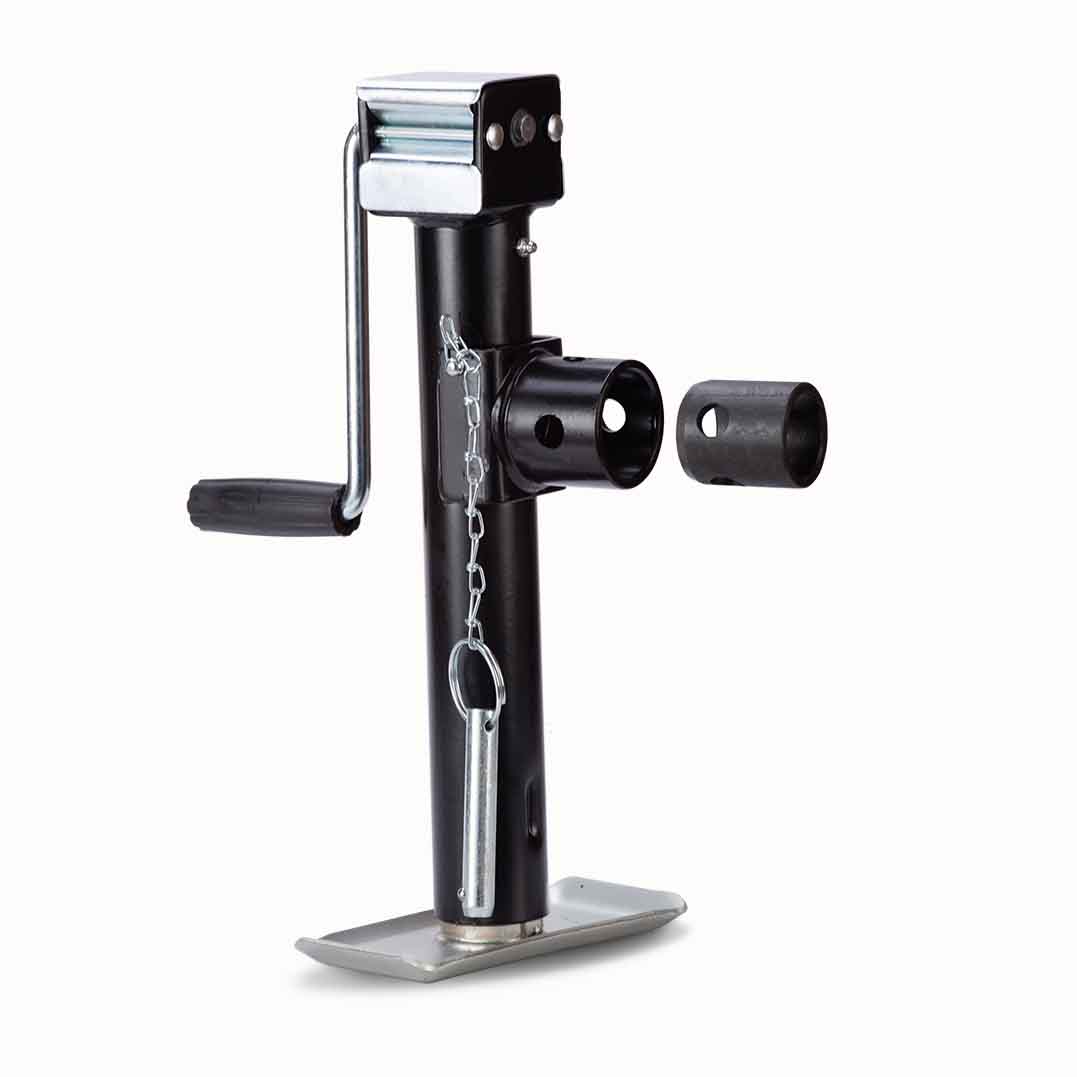

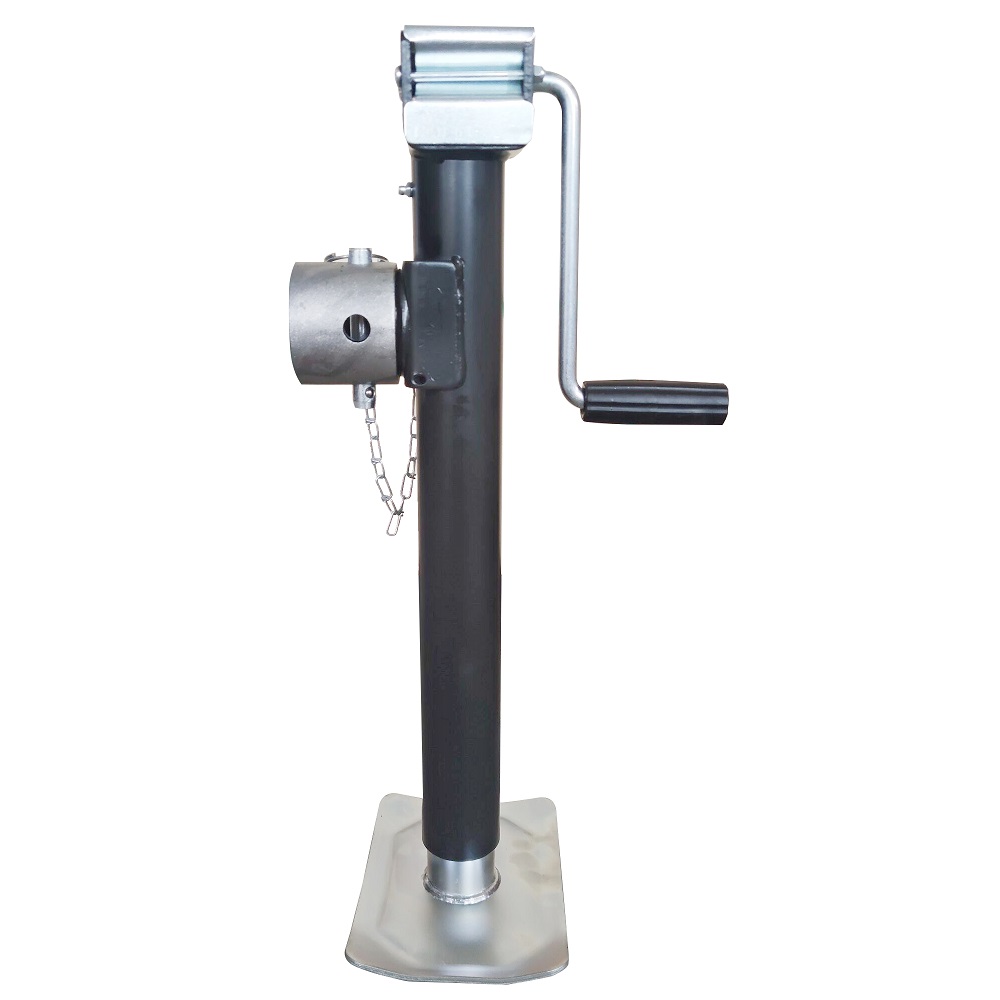

TOW-MAX pipe mount jack allows the jack to pivot on its mounting bracket and swing up and out of the way for travel. This swivel jack pivots up for travel and down for use. Built-in grease zerk allows for simple greasing. With a jack foot plate welded on the bottom, Tow-Max pipe mount jack also provides added stability for your trailer on rough terrain. It includes a weldable pipe with a 9/16″ hole for secure mounting.

Specifications

Product Code Capacity Handle Styles Travel Bracket Height (A) Retracted Overall Height (B) Pull Pin Size Finish Unit Wt. (lbs) Qty/Pallet
RJP2001B 2,000 lb Topwind 10″ 11″ 17″ 9/16″ black powder 11.7 160
RJP2001SB 2,000 lb Sidewind 10″ 10″ 17-1/2″ 9/16″ black powder 13.5 120
RJP2001SZ 2,000 lb Sidewind 10″ 10″ 17-1/2″ 9/16″ clear zinc plated 13.5 120
RJP2002B 2,000 lb Topwind 15″ 16″ 22″ 9/16″ black powder 13.9 160
RJP2002SB 2,000 lb Sidewind 15″ 15-1/4″ 22-3/4″ 9/16″ Black powder 15.7 120
RJP2002SZ 2,000 lb Sidewind 15″ 15-1/4″ 22-3/4″ 9/16″ clear zinc plated 15.7 120
RJP5001B 5,000 lb Topwind 10″ 11″ 17″ 9/16″ black powder 12 160
RJP5002B 5,000 lb Topwind 15″ 16″ 22″ 9/16″ black powder 14.5 160
RJP5001SB 5,000 lb Sidewind 10″ 10″ 17-1/2″ 5/8″ black powder 13.8 120
RJP5001SZ 5,000 lb Sidewind 10″ 10″ 17-1/2″ 5/8″ clear zinc plated 13.8 120
RJP5002SB 5,000 lb Sidewind 15″ 15-1/4″ 22-3/4″ 5/8″ black powder 16.8 120
RJP5002SZ 5,000 lb Sidewind 15″ 15-1/4″ 22-3/4″ 5/8″ clear zinc plated 16.8 120
RJP5002SBL 5,000 lb Sidewind 15″ 20″ 26″ 5/8″ black powder 17.2 120
RJP7001B 7,000 lb Topwind 10″ 10″ 19-3/4″ 5/8″ black powder 14.2
RJP7001SB 7,000 lb Sidewind 10″ 10″ 21-1/2″ 5/8″ black powder 16
