Square Jack

Ideal for use with ag, industrial, commercial, large utility and many other types of trailers.

Home > Square Jack

Square Jack

Features

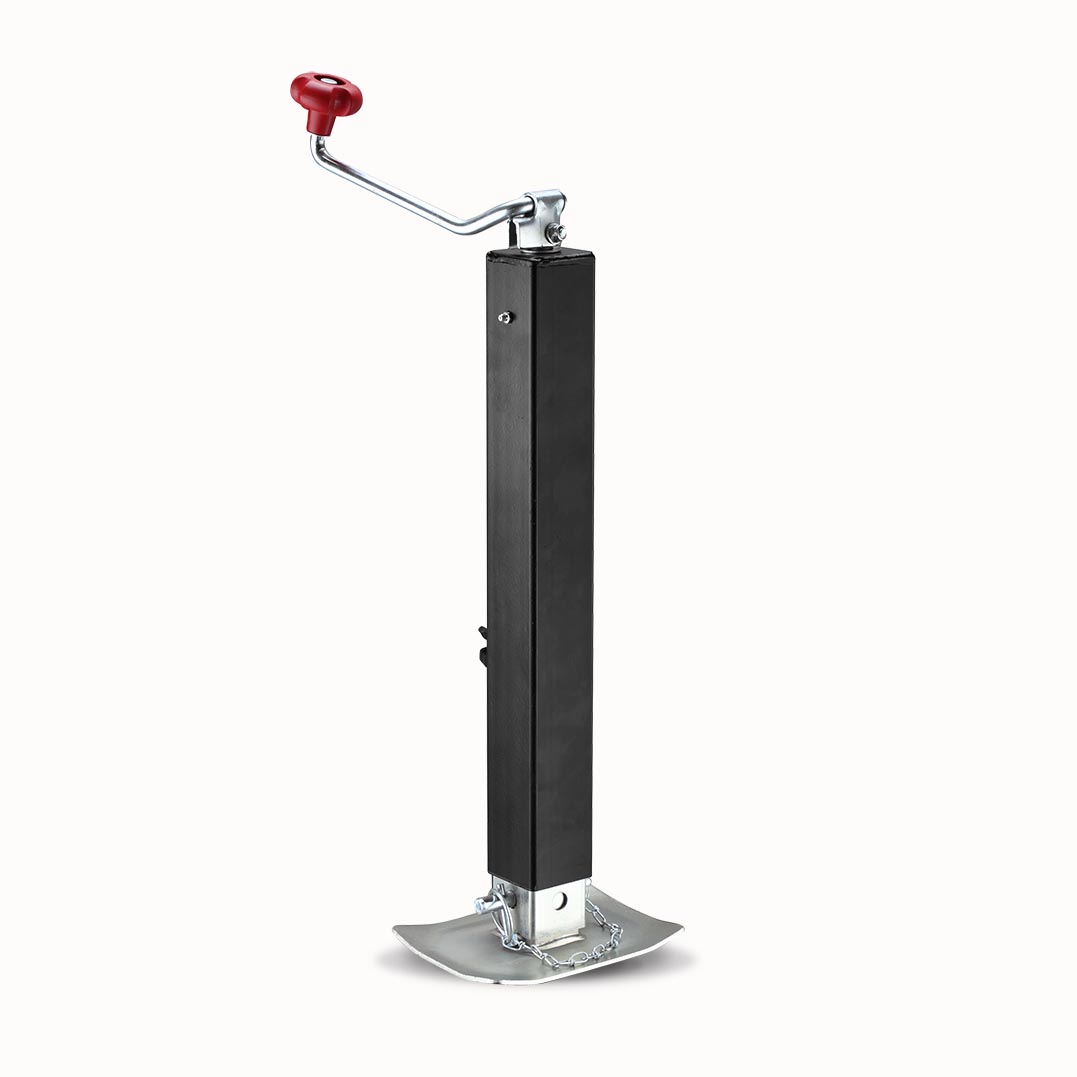

  • Topwind models come standard with a comfortable claw knob on a clear
    zinc solid bar handle that can be folded away when not in use
  • All models come standard with a durable black powder coat outer tube and a durable zinc finish inner tube
  • Both drop leg and fix leg models are available
  • 5,000lb models use a 2 1/4” outer tube and include a 3-3/4” x 7-1/2” weld on durable zinc finish sand foot
  • 8,000lb models use a 2 ½” outer tube and come with a large 6” x 8” weld on durable zinc finish sand foot

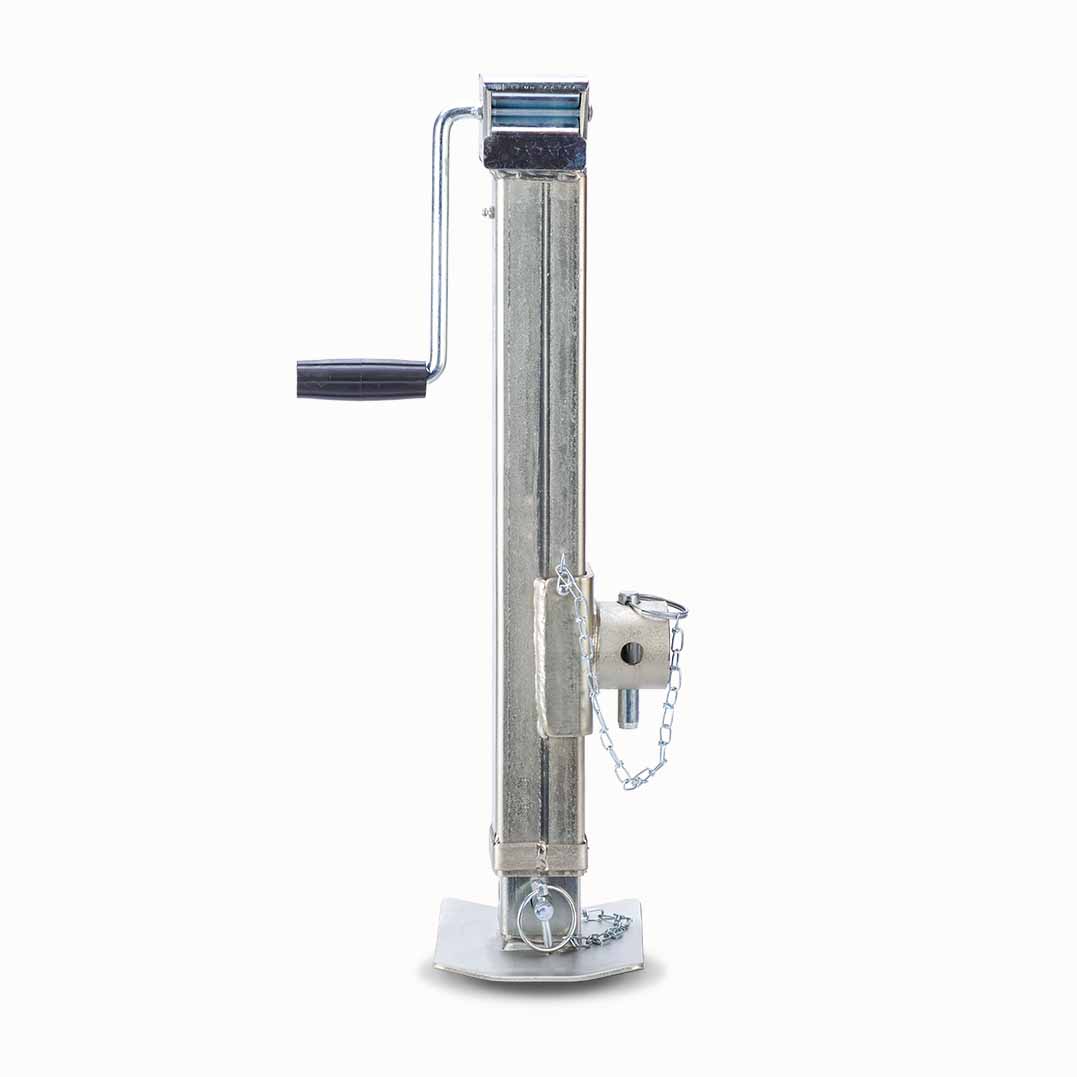

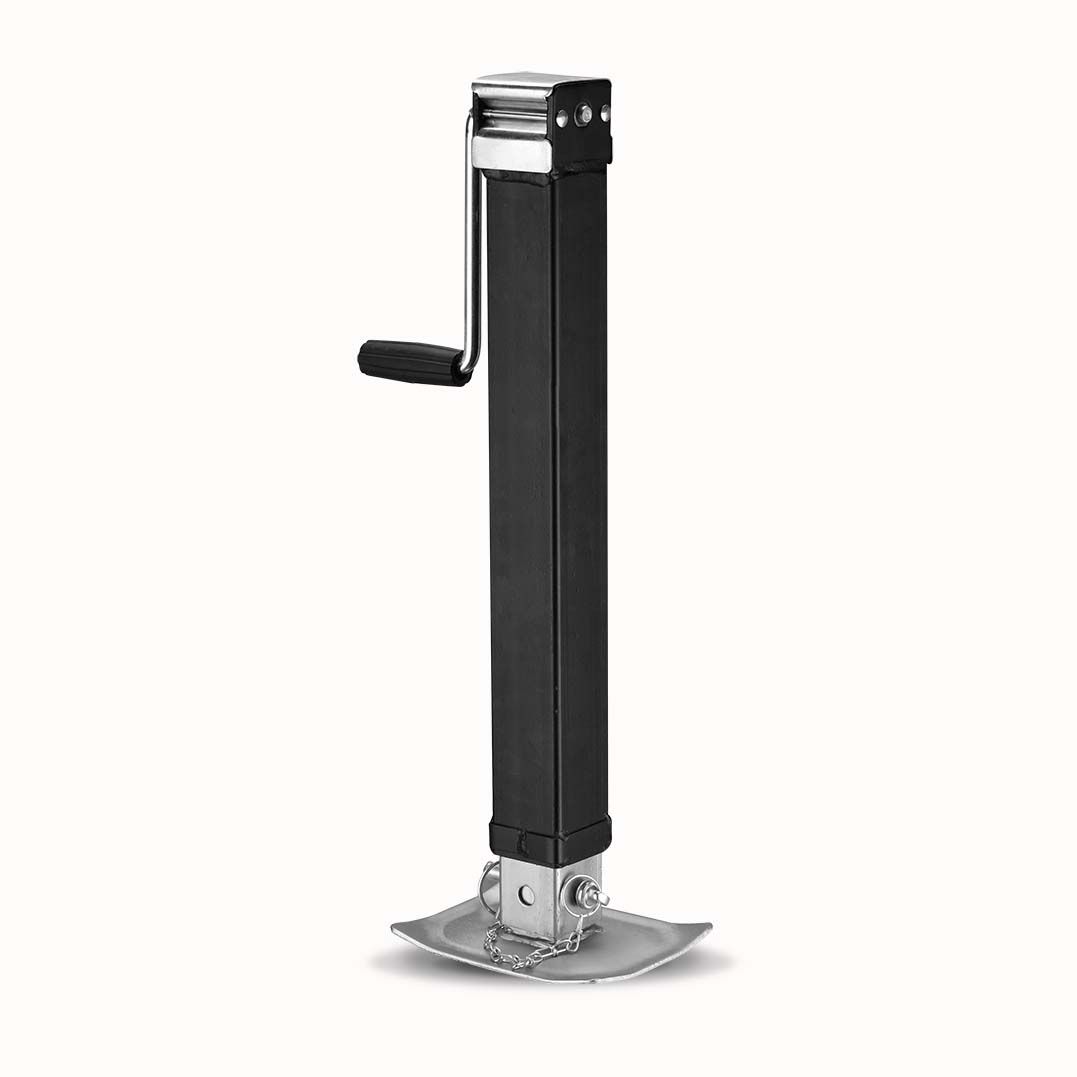

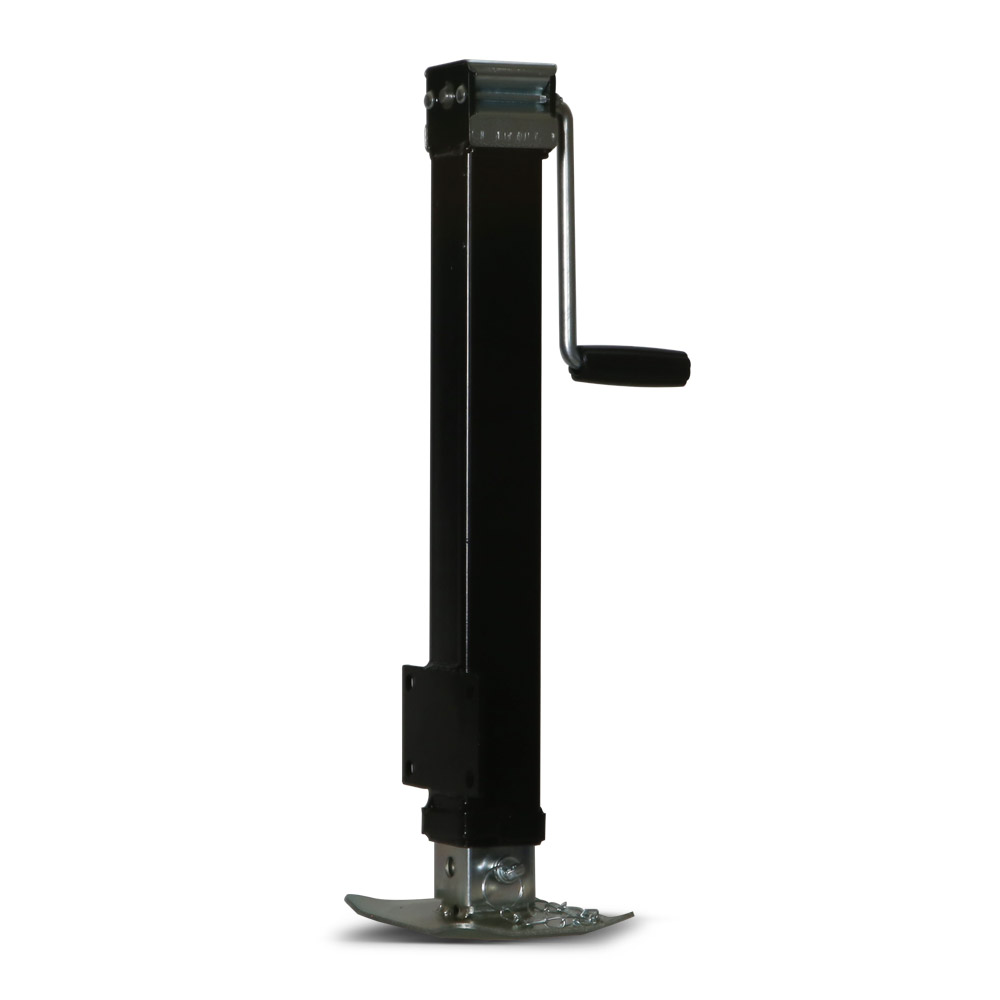

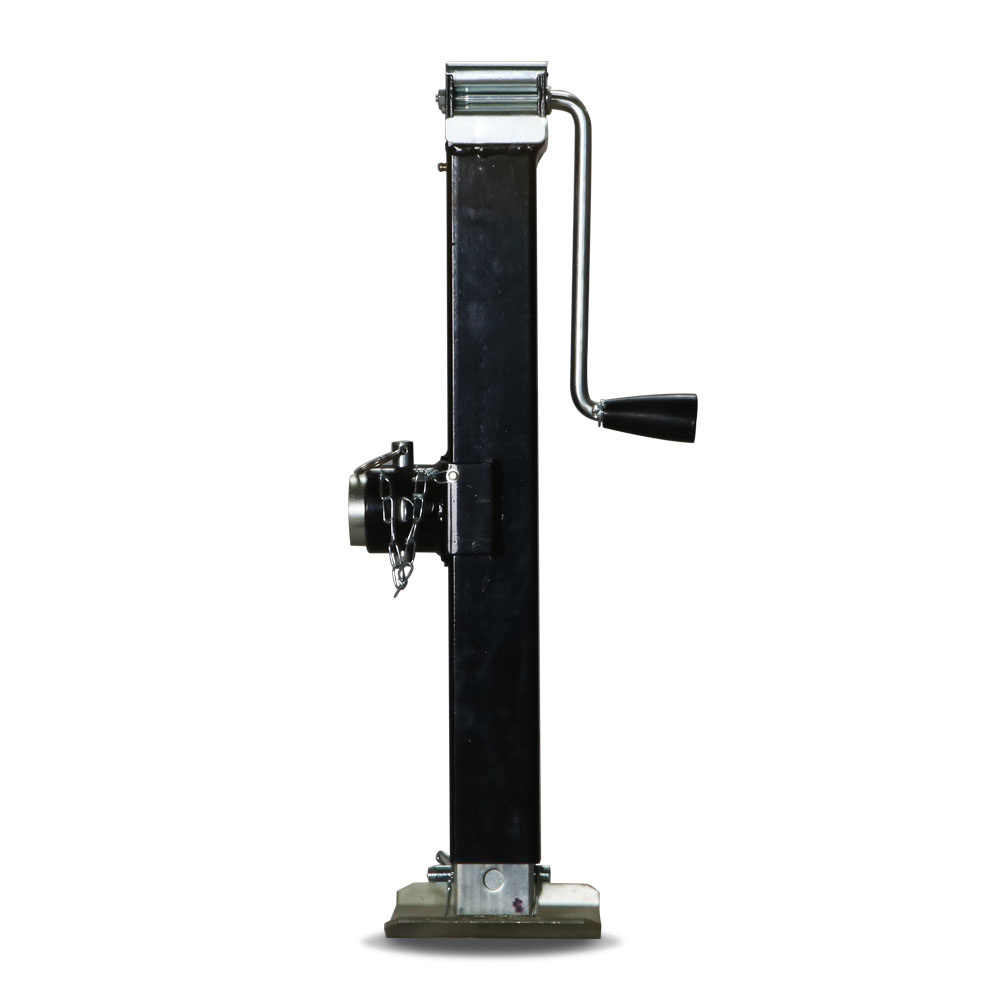

  • 8,000lb sidewind models also include a belly band welded to the bottom of the outer tube for added strength
  • All models come standard with a grease zerk for easy greasing of jack
  • Models with drop leg add 13.75” of additional adjustability
Get A Quote

TOW-MAX square tube jack supports capacity between 5,000 lbs. and 8,000 lbs. which meets your requirements to operate your trailer. The jacks are made with the highest quality and best performance to balance your speed, capacity and effort.
The jacks are manufactured with Heavy-duty, reinforcement ribs and zero water retention. The painted outer tube with final finish primer, zinc-plated inner and drop leg offer more durability and improved performance. Precision manufactured for long term reliability and smooth, easy cranking. Easy lubrication system has improved the gear and bearing life.

Specifications

Product Code Support Capacity Handle Styles Travel Bracket Height (A) Retracted Overall Height (B) Drop leg adjust height Finish Unit Wt. (lbs) Qty/Pallet
SJP5002BF 5,000 lb Topwind 15″ 15″ 24-3/4″ N/A black powder coating 18.3 75
SJP5002SBF 5,000 lb Sidewind 15″ 15-3/4″ 24-3/4″ N/A black powder coating 19.3 75
SJP7002BF 7,000 lb Topwind 15″ 16-1/2″ 25-1/2″ N/A black powder coating 22.8 75
SJP7002SBF 7,000 lb Sidewind 15″ 14-1/2″ 25-1/2″ N/A black powder coating 24.3 75
SJP7002BD 7,000 lb Topwind 15″ 14-1/2″ 25-1/2″ 13″ black powder coating 27 75
SJP7002SBD 7,000 lb Sidewind 15″ 14-1/2″ 25-1/2″ 13″ black powder coating 28 75
SJ5002BD 5,000 lb Topwind 15″ N/A 25-1/4″ 13″ black powder coating 19.2 75
SJ5002SBD 5,000 lb Sidewind 15″ N/A 24-1/2″ 13″ black powder coating 20.2 75
SJ7002BD 7,000 lb Topwind 15″ N/A 25-1/4″ 13″ black powder coating 22.3 75
SJ7002SBD 7,000 lb Sidewind 15″ N/A 25-1/2″ 13″ black powder coating 23.8 75
SJ7002SBD-P 7,000 lb Sidewind 15″ 5″ 25-1/2″ 13″ black powder coating 24.14 75
