• A variety of sizes, capacity and stud pattern available.
• Suitable for electric or hydraulic or mechanical brakes.
• Constructed of cast iron with a black painted finish.
• Bearings, grease seal, grease cap, and lug nuts are included.
• Brake flange is mounted on limited capacity trucks.
• Breeds and studs that have been pre-pressed.
• Both US and AUS types are available.

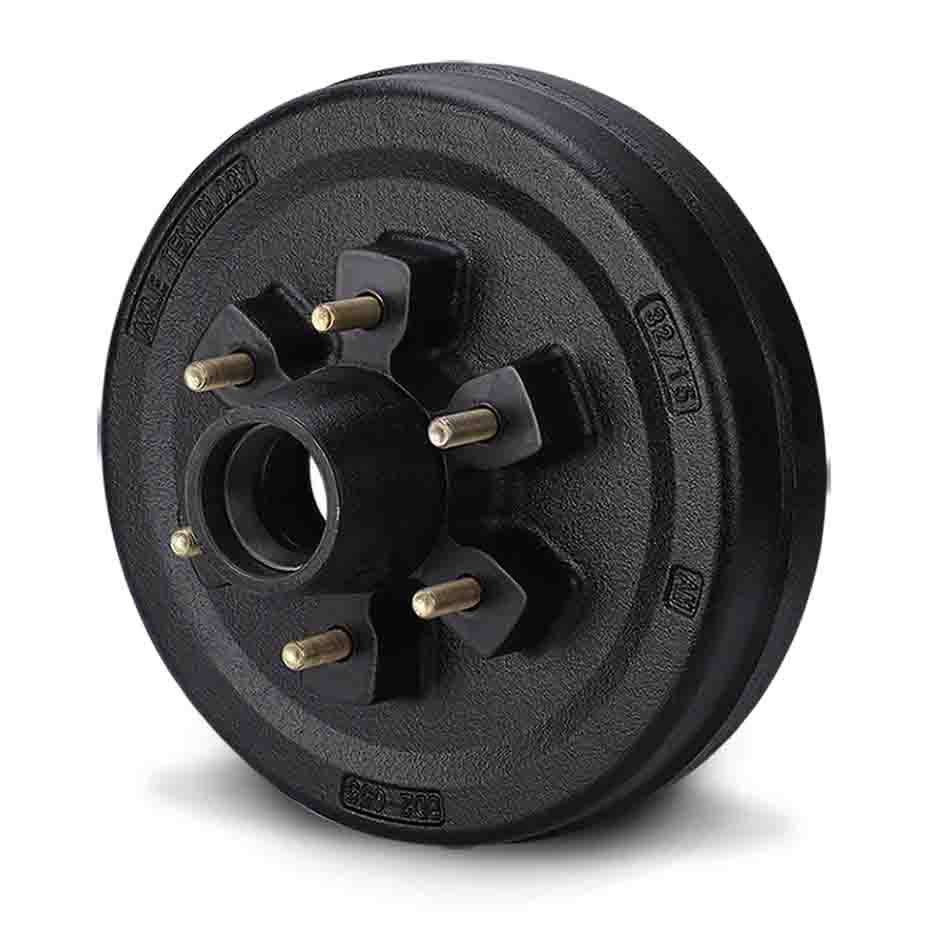

Tow-Max is proud to offer a wide variety of hubs and hub drums on the market. The capacity of the products ranges from 1750-3500 pounds per axle. Tow-Max has spent years improving and perfecting its product portfolio in the best designs in the industry. We have a good manufacturing tradition and certification helps to lay the foundation for the best quality and efficiency in the manufacture of brake hub drums. In China, Tow-Max prides itself on making the leading quality hubs and hub drums.
| Part Number | Description | No. of Studs | P.C.D | Inner Bearing | Outer Bearing | Capacity per each | Grease Seal ID | Finish | Application Market |
| HD103551B | 10″x2-1/4″ Hub Drum | 1/2″x 5 | 4-1/2″ | L68149 | L44649 | 1750 lbs | 1.73″ | Painted | US Type |
| HD103552B | 10″x2-1/4″ Hub Drum | 1/2″x 5 | 5″ | L68149 | L44649 | 1750 lbs | 1.73″ | Painted | US Type |
| HD103561B | 10″x2-1/4″ Hub Drum | 1/2″x 6 | 5-1/2″ | L68149 | L44649 | 1750 lbs | 1.73″ | Painted | US Type |
| HD126061B | 12″x2″ Hub Drum | 1/2″x 6 | 5-1/2″ | 25580 | 15123 | 3000 lbs | 2.24″ | Painted | US / AUS |
| HD127081B | 12″x2″ Hub Drum | 1/2″x 8 | 6-1/2″ | 25580 | 14125A | 3500 lbs | 2.24″ | Painted | US Type |
| HD09FHB | 9″x1-3/4″ Hub Drum Ford | 1/2″x 5 | 4-1/2″ | LM67048 | LM11949 | LM | Painted | Aus Type | |
| HD09FFB | 9″x1-3/4″ Hub Drum Ford | 1/2″x 5 | 4-1/2″ | L68149 | LM12749 | SL | Painted | Aus Type | |
| HD09HTHB | 9″x1-3/4″ Hub Drum HT | 7/16″x 5 | 107.95 | LM67048 | LM11949 | LM | Painted | Aus Type | |
| HD09HTFB | 9″x1-3/4″ Hub Drum HT | 7/16″x 5 | 107.95 | L68149 | LM12749 | SL | Painted | Aus Type | |
| HD09HQHB | 9″x1-3/4″ Hub Drum HQ | 7/16″x 5 | 120.65 | LM67048 | LM11949 | LM | Painted | Aus Type | |
| HD09HQFB | 9″x1-3/4″ Hub Drum HQ | 7/16″x 5 | 120.65 | L68149 | LM12749 | SL | Painted | Aus Type | |
| HD09LCHB | 9″x1-3/4″ Hub Drum LC | 1/2″x 6 | 139.7 | LM67048 | LM11949 | LM | Painted | Aus Type | |
| HD09LCFB | 9″x1-3/4″ Hub Drum LC | 1/2″x 6 | 139.7 | L68149 | LM12749 | SL | Painted | Aus Type | |
| HD10FHB | 10″x2-1/4″ Hub Drum Ford | 1/2″x 5 | 4-1/2″ | LM67048 | LM11949 | LM | Painted | Aus Type | |
| HD10FFB | 10″x2-1/4″ Hub Drum Ford | 1/2″x 5 | 4-1/2″ | L68149 | LM12749 | SL | Painted | Aus Type | |
| HD10HTHB | 10″x2-1/4″ Hub Drum HT | 7/16″x 5 | 107.95 | LM67048 | LM11949 | LM | Painted | Aus Type | |
| HD10HTFB | 10″x2-1/4″ Hub Drum HT | 7/16″x 5 | 107.95 | L68149 | LM12749 | SL | Painted | Aus Type | |
| HD10HQHB | 10″x2-1/4″ Hub Drum HQ | 7/16″x 5 | 120.65 | LM67048 | LM11949 | LM | Painted | Aus Type | |
| HD10HQFB | 10″x2-1/4″ Hub Drum HQ | 7/16″x 5 | 120.65 | L68149 | LM12749 | SL | Painted | Aus Type | |
| HD10LCHB | 10″x2-1/4″ Hub Drum LC | 1/2″x 6 | 139.7 | LM67048 | LM11949 | LM | Painted | Aus Type | |
| HD10LCFB | 10″x2-1/4″ Hub Drum LC | 1/2″x 6 | 139.7 | L68149 | LM12749 | SL | Painted | Aus Type | |
| HD126051B | 12″x2″ Hub Drum LC | 1/2″x 5 | 150MM | 25580 | 15123 | 2.24″ | Painted | Aus Type |
